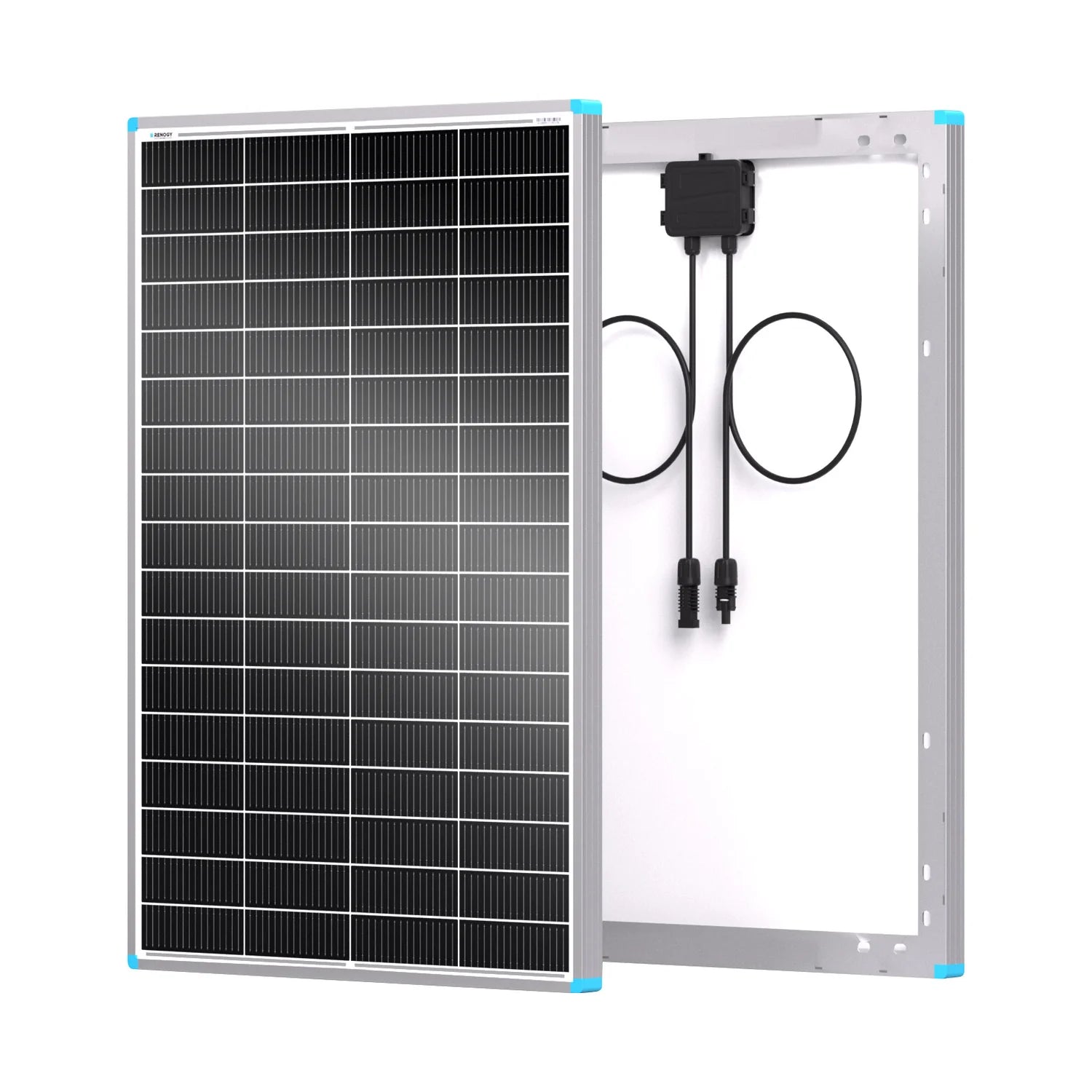

Renogy N-Type 16BB 200 Watt Solar Panel

Electrical Data

• Maximum Power at STC: 200 W
• Optimum Operating Voltage (Vmp): 31.03 V
• Optimum Operating Current (Imp): 6.45 A
• Open Circuit Voltage (Voc): 37.44 V
• Short Circuit Current (Isc): 6.85 A
• Module Efficiency: 20.7%
• Maximum System Voltage: 600 VDC
• Maximum Series Fuse Rating: 15 A

Thermal Characteristics

• Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
• Nominal Operating Cell Temperature (NOCT): 45°C ± 2°C
• Temperature Coefficient of Pmax: -0.32%/°C
• Temperature Coefficient of Voc: -0.26%/°C
• Temperature Coefficient of Isc: 0.046%/°C

Mechanical Data

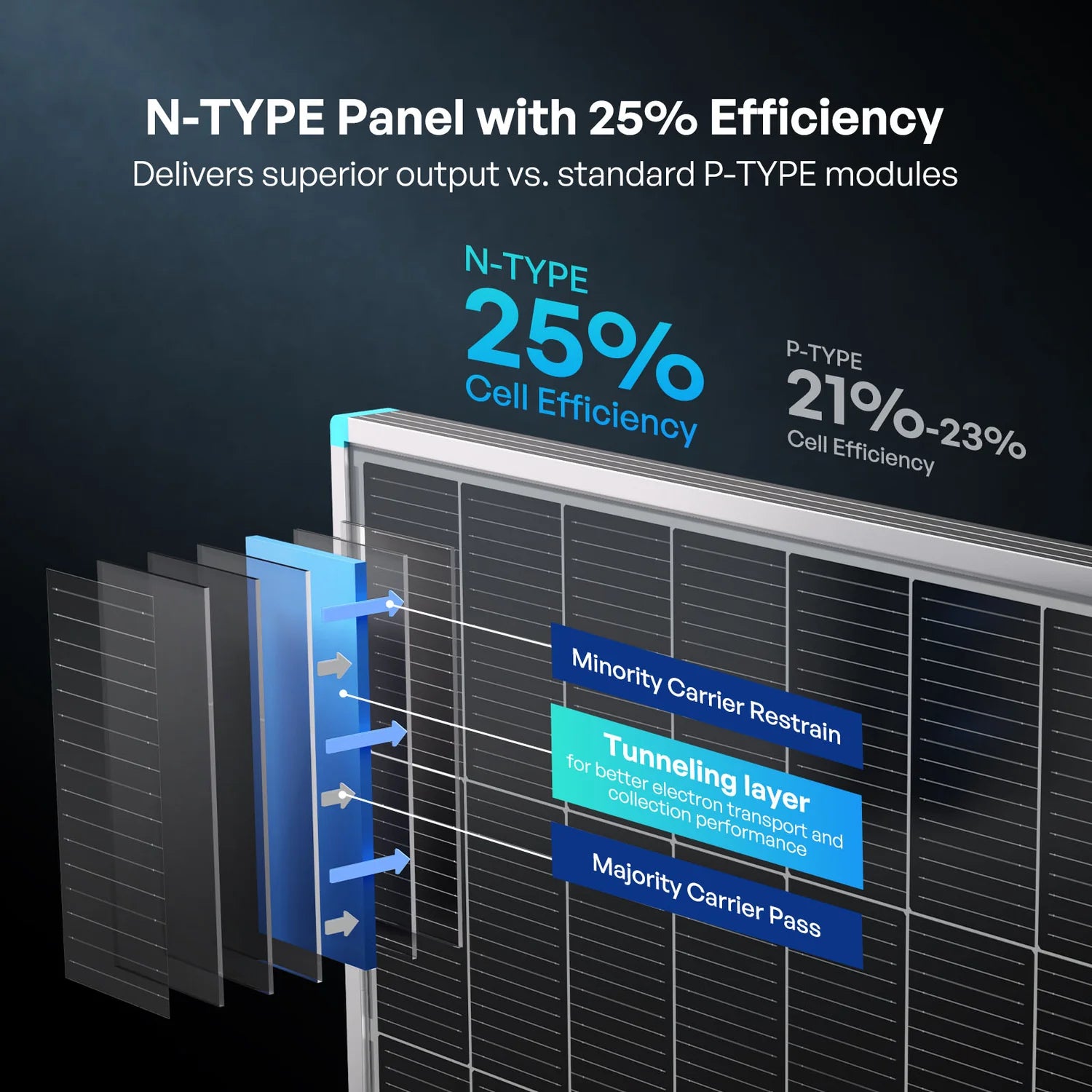

• Solar Cell Type: Monocrystalline (7.2 x 3.6 in)
• Number of Cells: 52 (4 x 13)
• Dimensions: 1262 x 764 x 30 mm (49.7 x 30.1 x 1.2 in)
• Weight: 10.6 kg (23.4 lbs)
• Front Glass: Tempered Glass 0.13 in (3.2 mm)
• Frame: Anodized Aluminium Alloy
• Connectors: Solar Connectors
• Fire Performance: Type 1

Solar Connectors

• Rated Current: 22 A
• Maximum Voltage: 1000 VDC
• Maximum AWG Size Range: 10 AWG
• Temperature Range: -40°C to 90°C (-40°F to 194°F)
• IP Rating: IP67

Junction Box

• IP Rating: IP65
• Diode Type: 15SQ045
• Number of Diodes: 2
• Output Cables: 14 AWG, 700 mm (27.6 in)

Certifications

• EN IEC61730
• EN IEC61215
• ISO 9001: Quality Management System

Warranties

• 10 Years Material and Workmanship

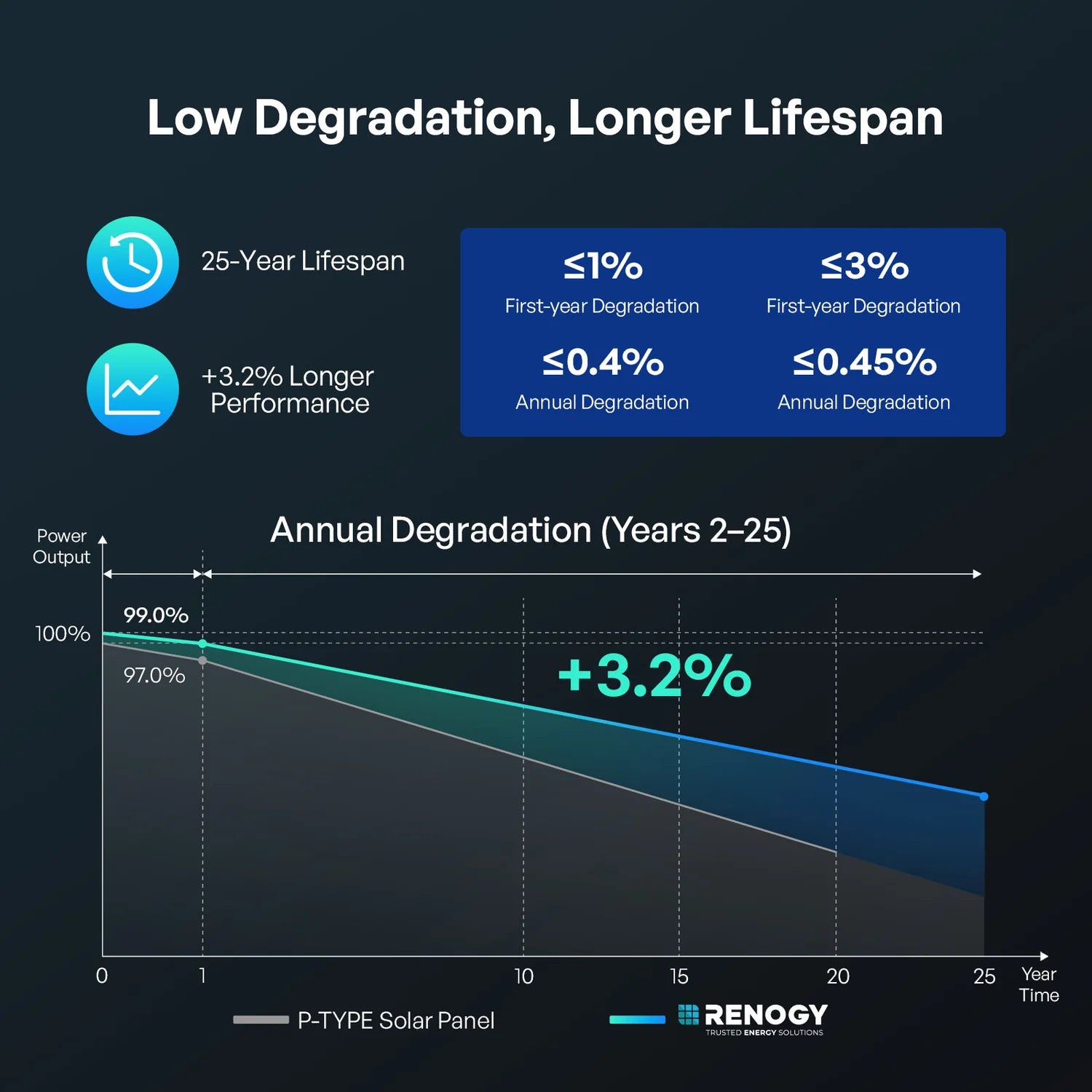

• 25 Years Power Output
