RENOGY Battery Shunt 300

$79.00
$79.00 $120.00
34% off
Shipping calculated at checkout.
  • Description
  • Details
  • Dimensions
  • Shipping & Returns

Renogy Smart Shunt 300 is an intelligent battery monitor that measures the battery voltage and current based on which it calculates the state of charge (SOC) and remaining running time of the battery.
In addition, the shunt records historical charging and discharging data such as full deep discharge cycle, discharge capacity, charge cycle, and battery temperature.
With the built-in Bluetooth module, Smart Shunt 300 communicates with the DC Home app and Renogy ONE. This allows you to monitor real-time charging and discharging data and customize related parameters. These settings encompass nominal capacity, deep discharge thresholds, temperature alarms, and SOC alarms.



Universal Battery Compatibility

Works seamlessly with various battery types, including Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, and Nickel-metal hybrid.



Comprehensive Battery Insights

Provides vital battery information such as State of Charge (SOC), voltage, current, energy, remaining time, temperature, and starter battery voltage.

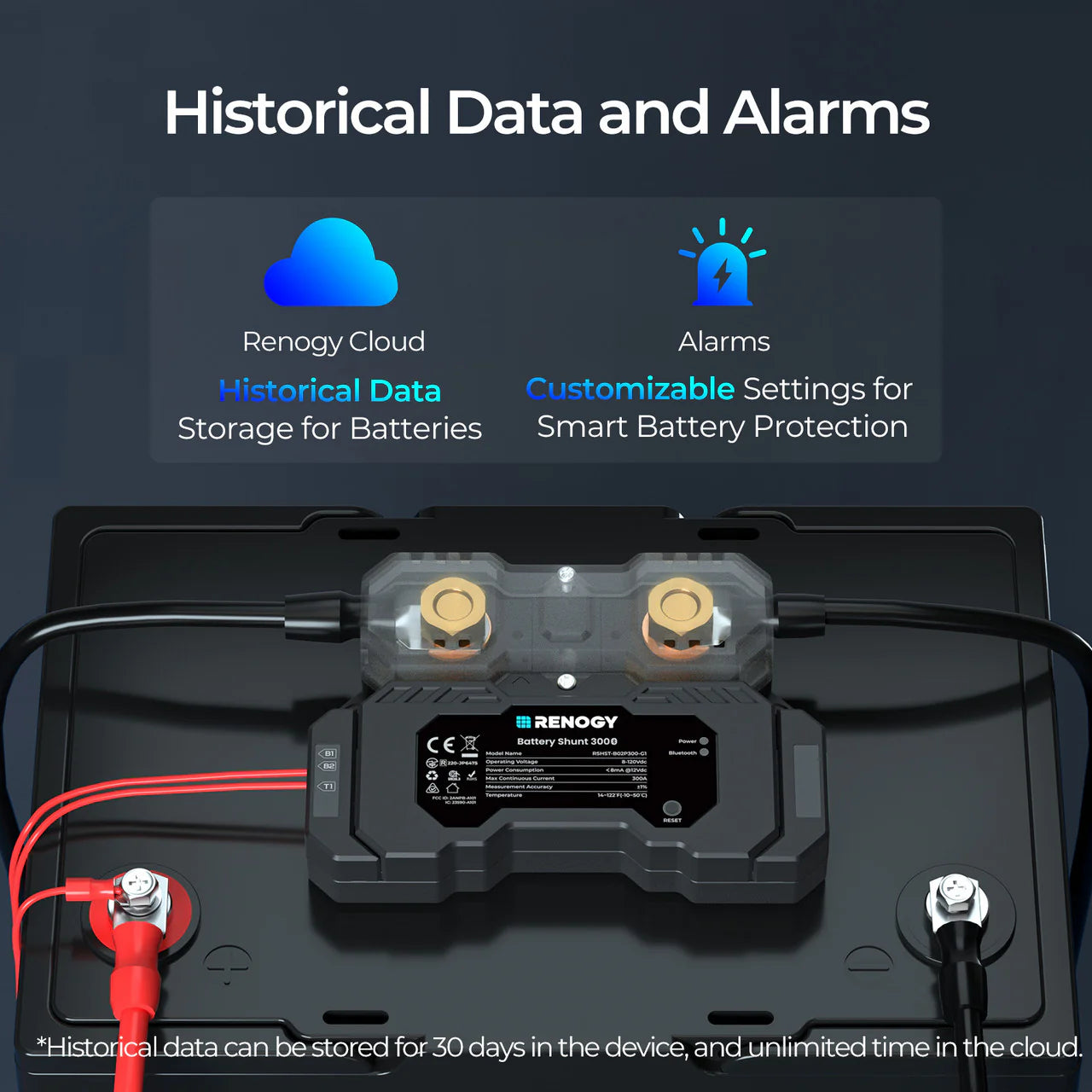

Alarm and Historical Data

Records historical data and offers alerts for abnormal conditions through the DC Home app.

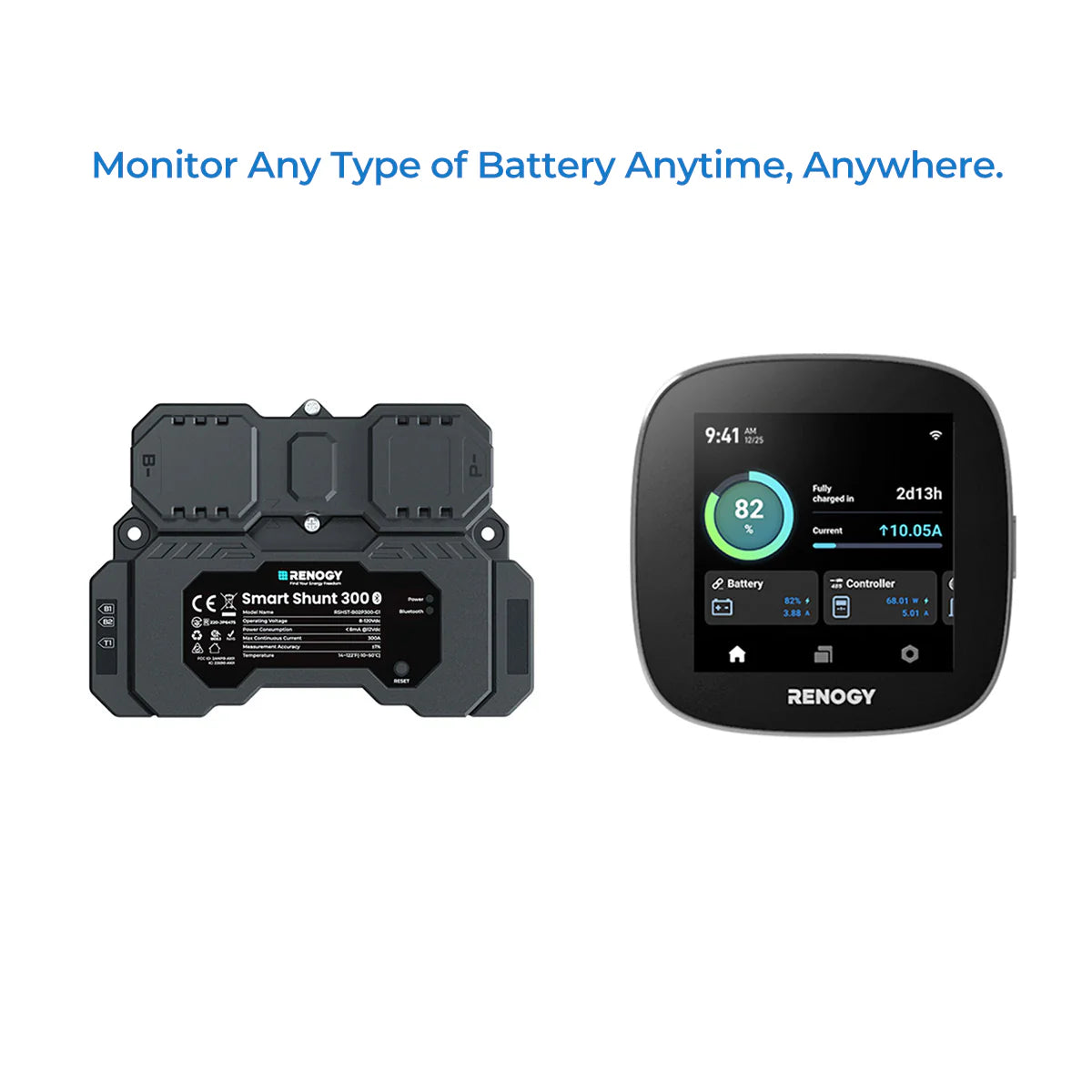

Convenient Remote Monitoring

Enables remote monitoring and control via Renogy ONE and the DC Home App using Bluetooth connectivity.



Effortless Installation and Configuration

Simplifies installation and settings adjustments through the DC Home app for a user-friendly experience.

Specifications
  • Power Supply: 8 - 120 VDC
  • Power Consumption: <0.1 W
  • Communication: Bluetooth LE and BLE Mesh
  • Max continuous current: 300A
  • Max peak current: 500A(<10s)
  • Current accuracy: ±1%
  • Current Resolution: 0.01 A
  • Battery Capacity: 1 - 6500Ah
  • Voltage Input Range: 8V to 120V DC
  • Voltage input resolution: 10 mV
  • Temperature sensor range: -20~80℃
  • Temperature sensor accuracy: ±1%
  • Operating Temperature: 14°F to 122°F (-10°C to 50°C)
  • Operating Humidity: 0% to 95% RH
  • Operating Altitude: Less than 2000m above sea level
  • Installation: Surface mounting
  • Battery connection: M10 bolts
  • Certifications: CE, FCC ID,IC ID, RCM, TSCA, RoHS, UN38.3, TELEC
  • Model Name: RSHST-B02P300-G1
  • Warranty: 1 year

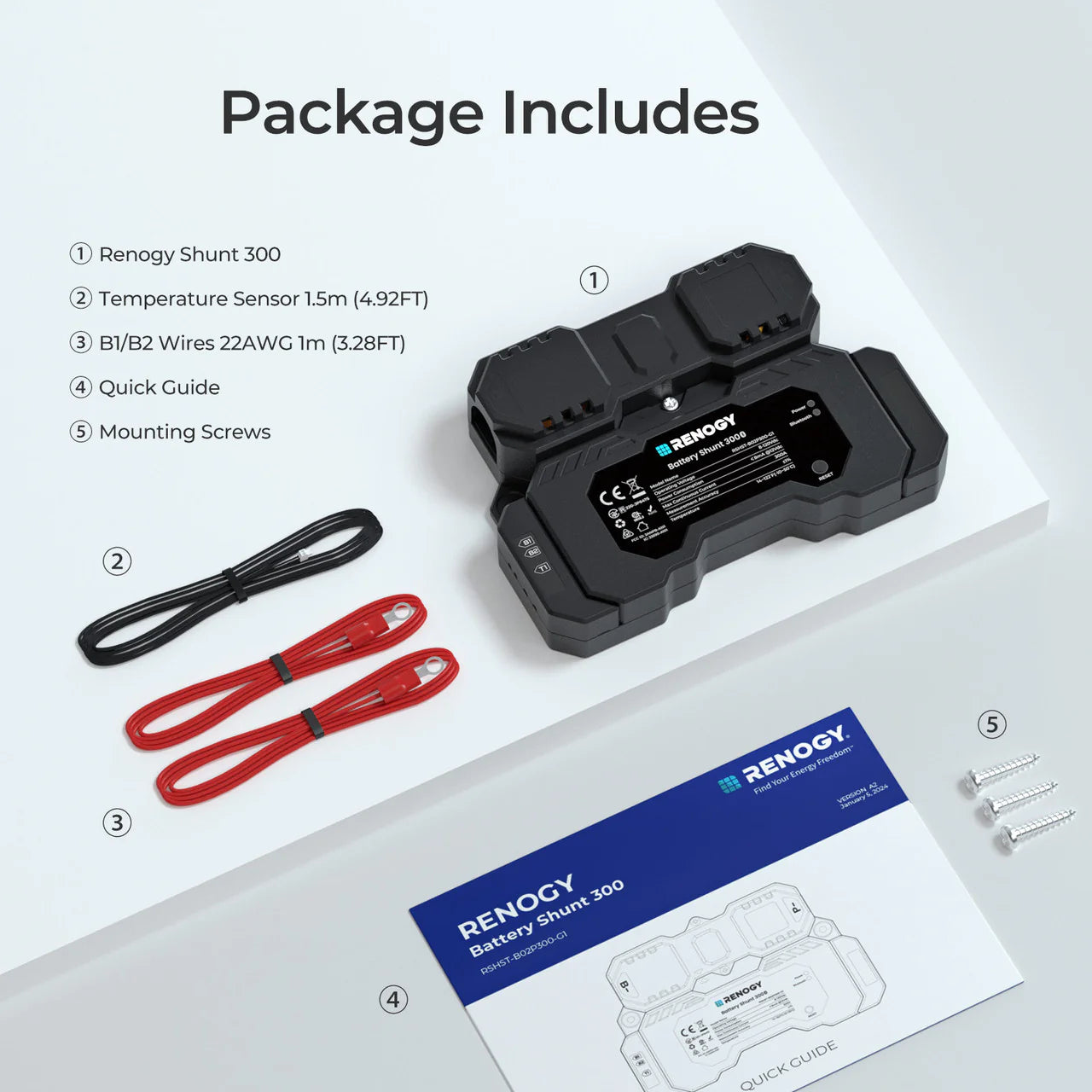

Package Includes
  • Battery Shunt 300 x 1
  • Quick Guide x 1
  • Mounting Screws x 3
  • B+ Wires (1 m) (22 AWG) × 2
  • Temperature Sensor (1.5 m) × 1

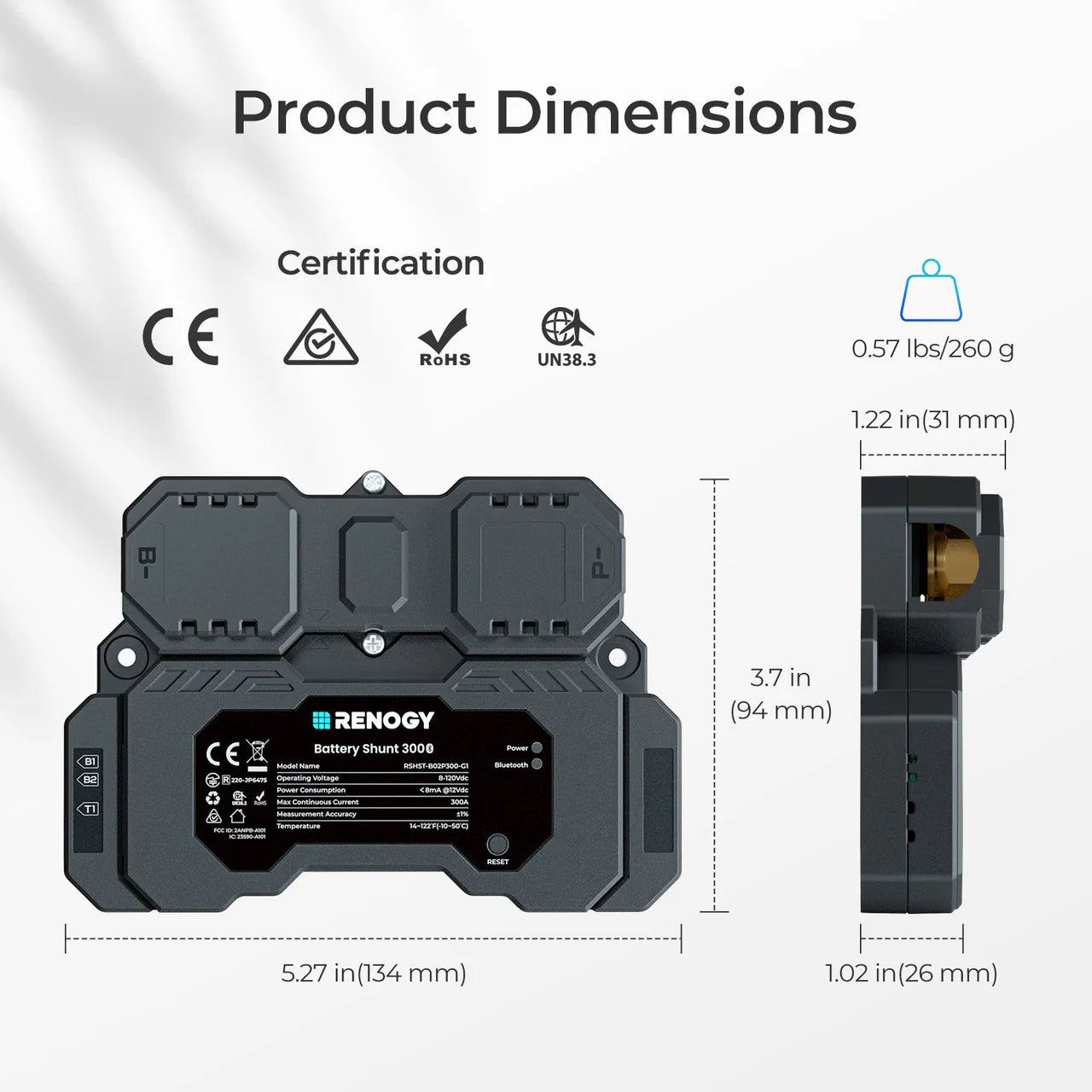

Dimensions: 5.27 x 3.82 x 1.22 inch (134 x 97 x 31 mm)

Weight: 0.57lb (260g)
