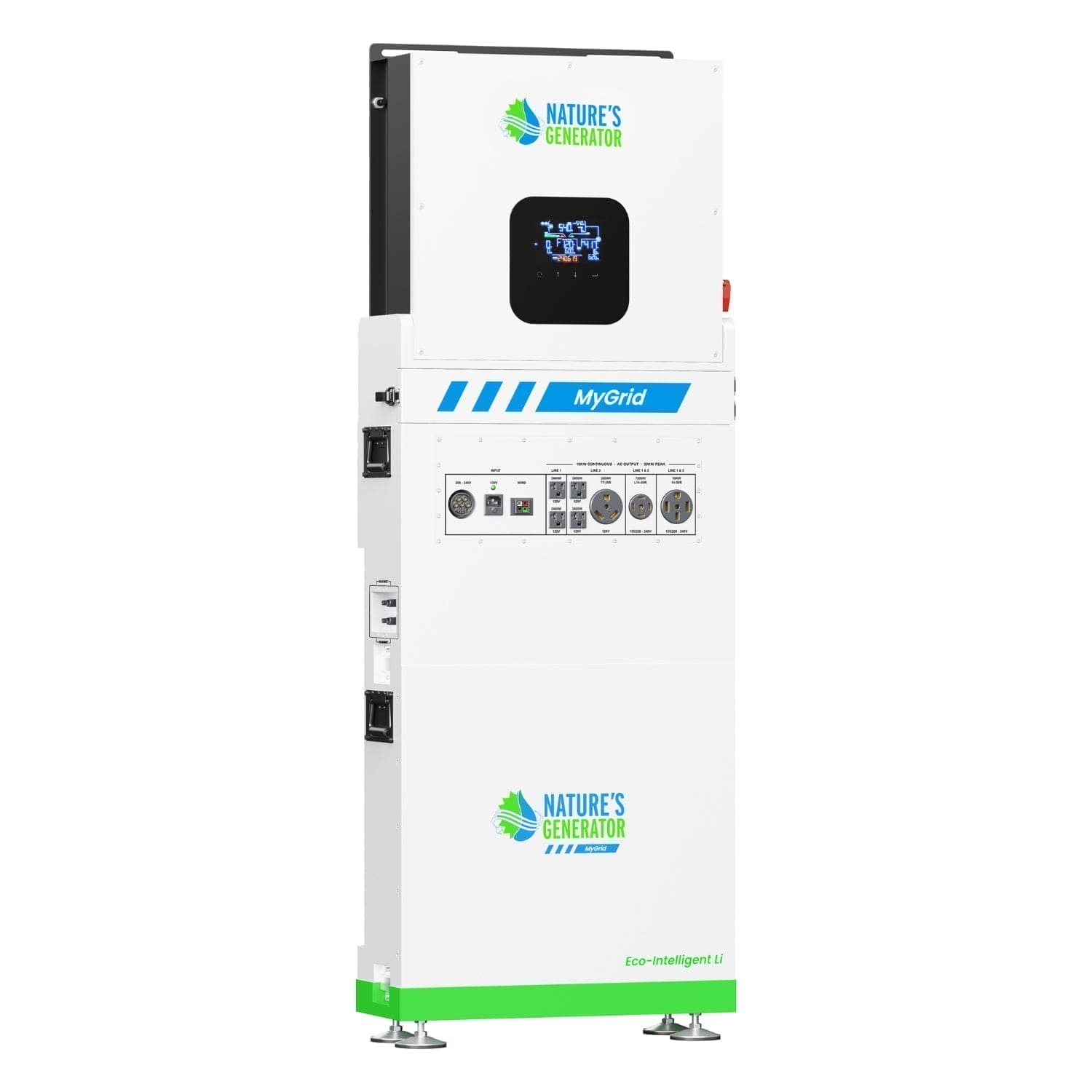

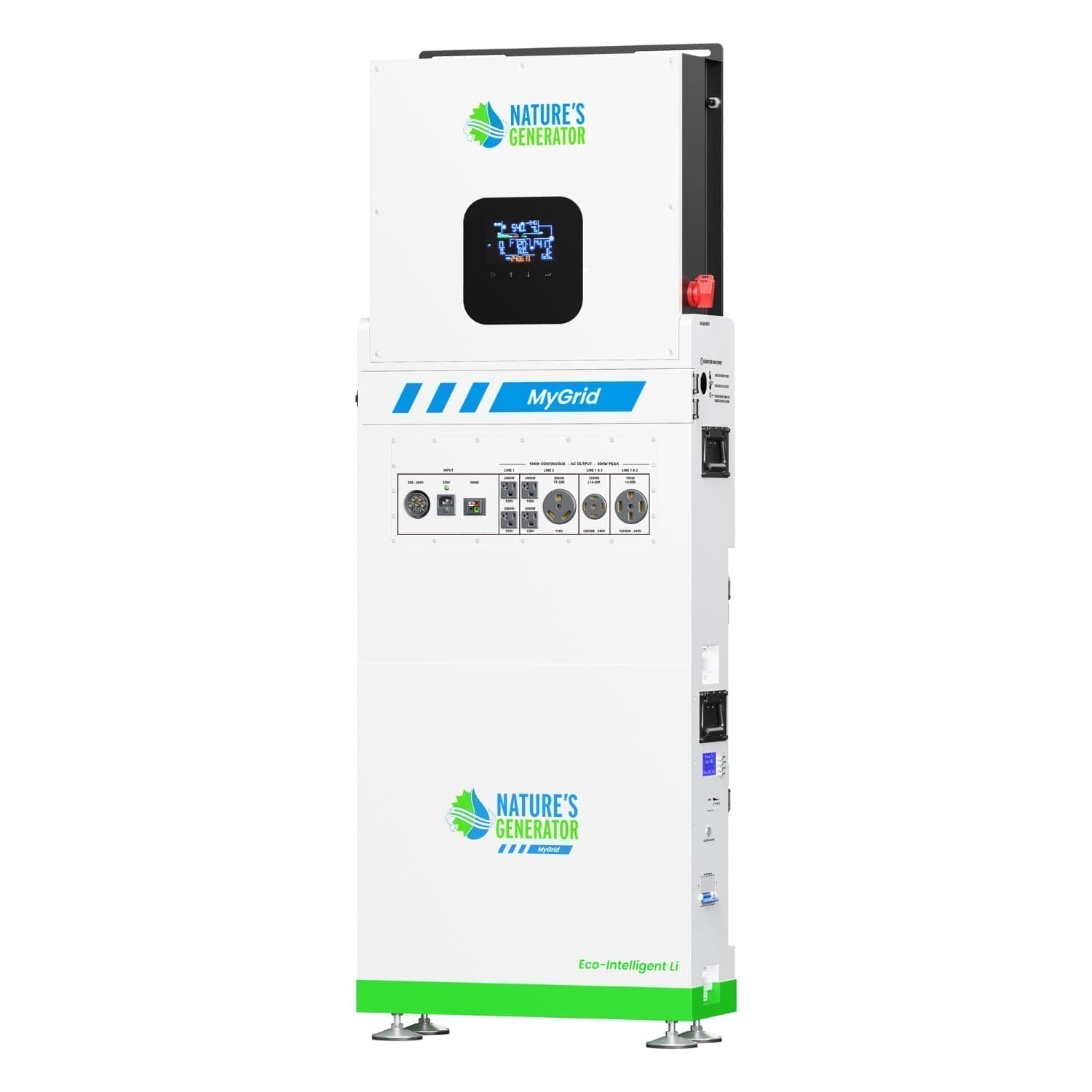

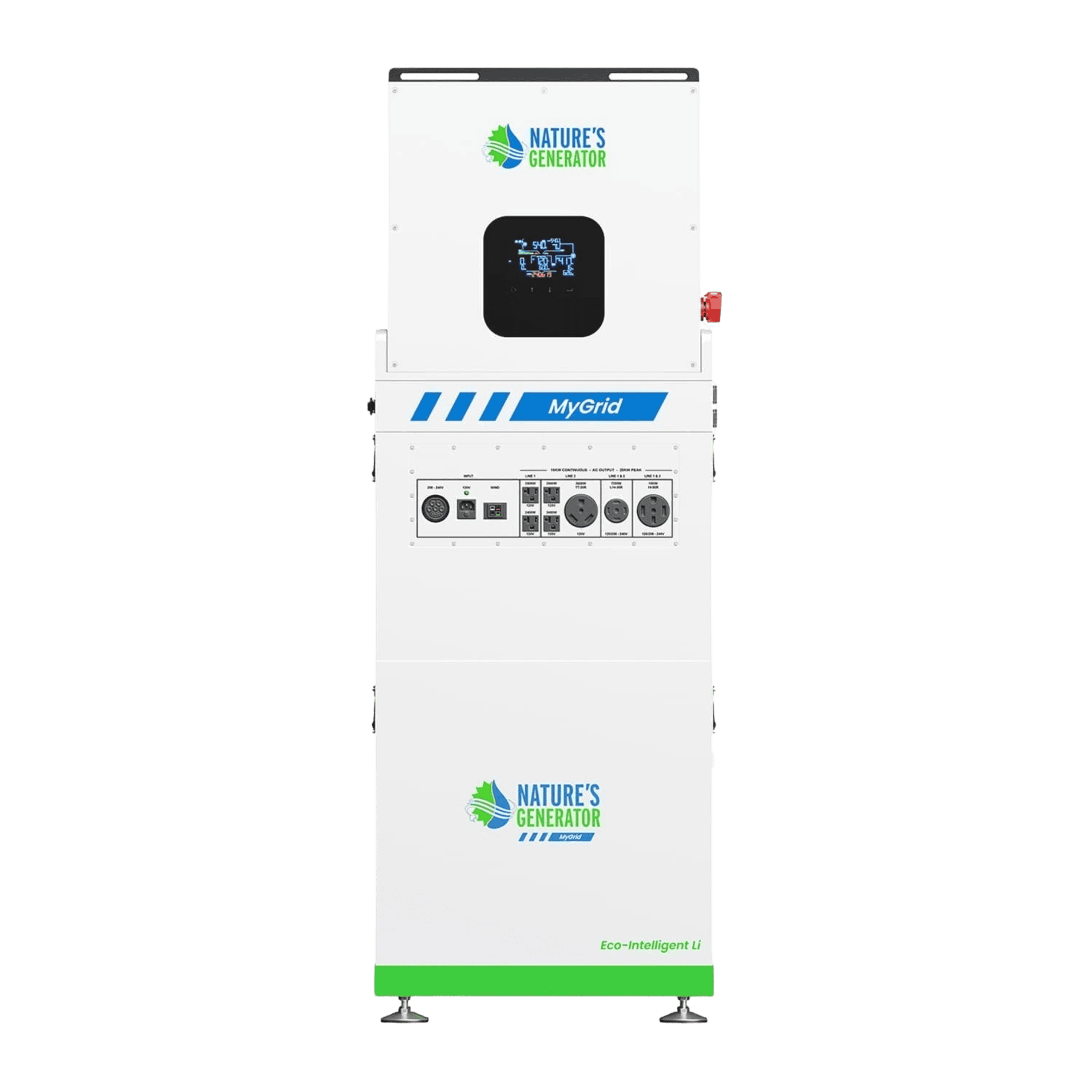

MyGrid 10K Whole Home Generator

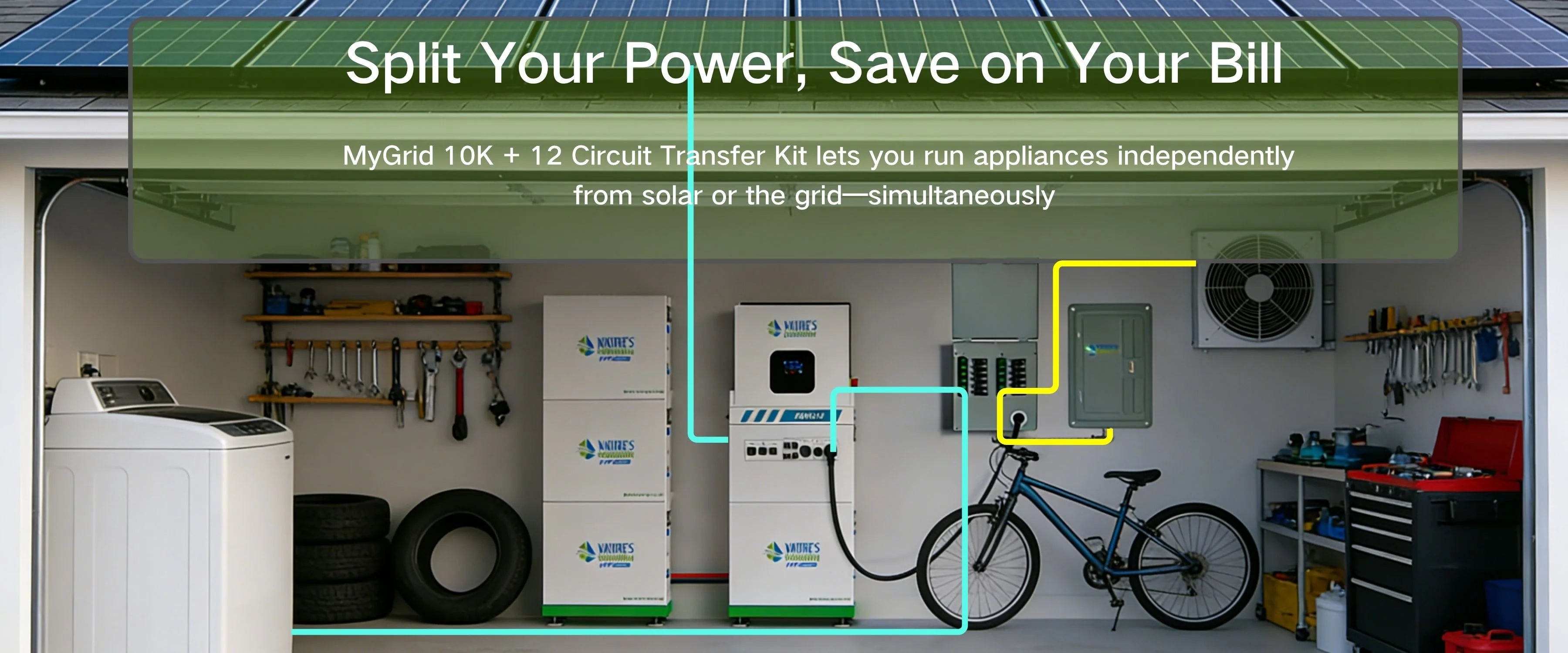

• Reduce Electricity Bills: Store solar or off-peak energy and use it during high-rate periods to lower electricity costs and increase energy independence.
• Powerful Performance: 10,000W output with 10,496Wh LiFePO4 battery, dependable whole-home power for outages or off grid use or uninterrupted power supply.

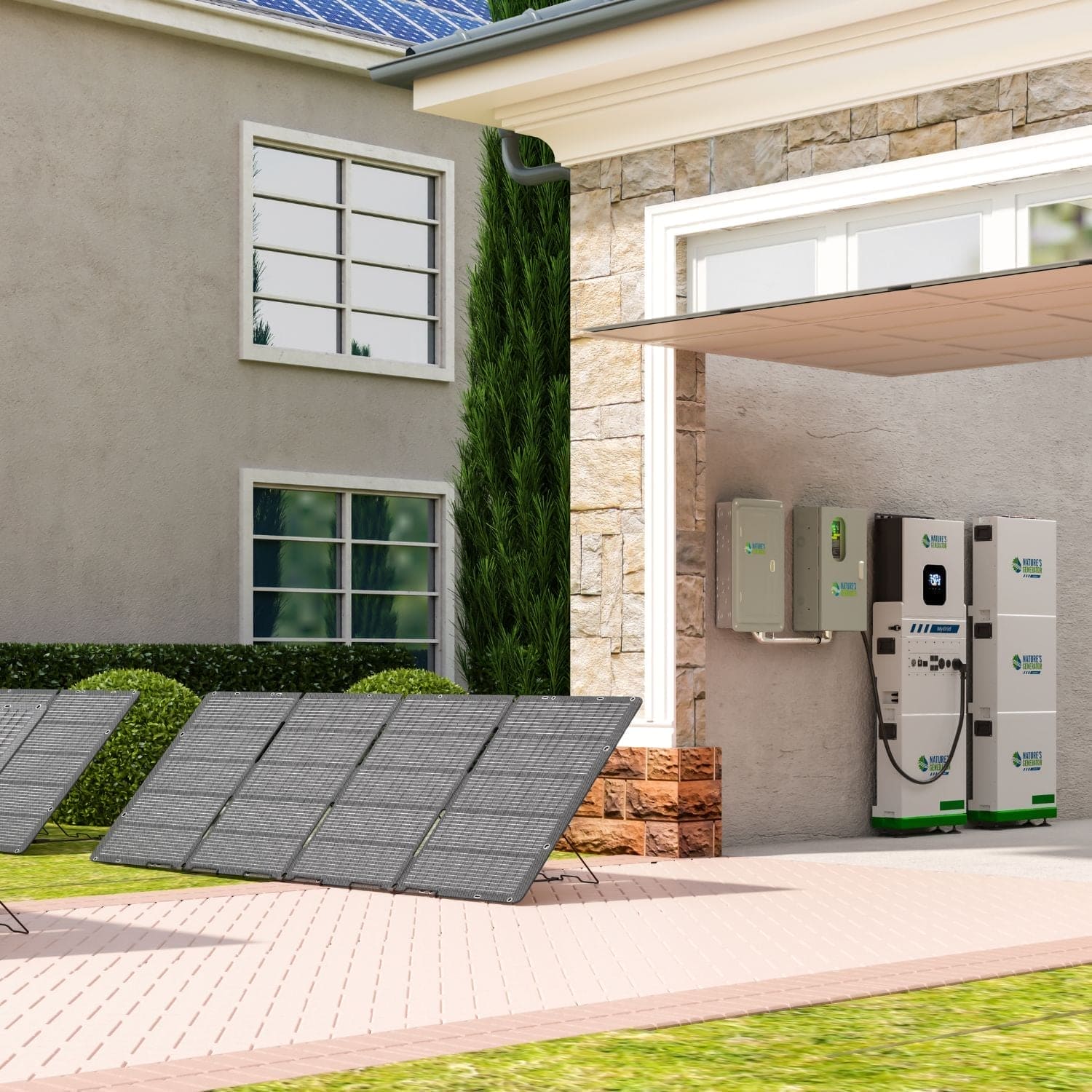

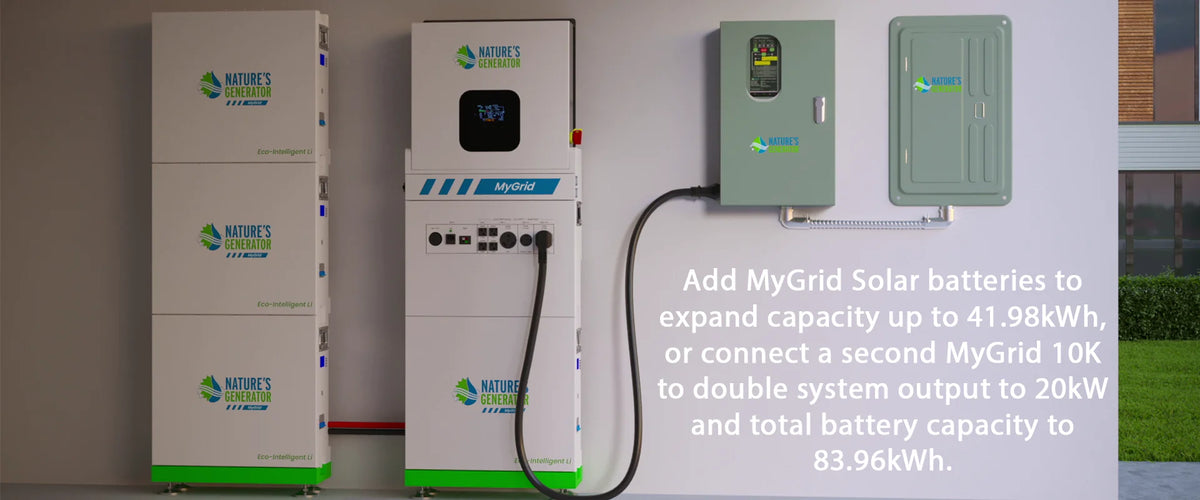

• Highly Expandable: Combine two units for 20,000W output, expand battery capacity to 73,742Wh, and integrate up to 12,000W solar panels or 350W wind turbine as energy needs grow.
• Dual Voltage Compatibility: Supports 120V, 120/240V and120/208V charging and discharging, suitable for residential, light commercial and AC coupling applications.
• Fast Recharge Performance: Advanced charging technology enables up to 80% charge in approximately 2 hours, minimizing downtime.
• Smart Battery Protection: Integrated Battery Management System (BMS) monitors, controls, and displays battery status for enhanced safety, performance, and longevity, with an easy-to-read LED display.

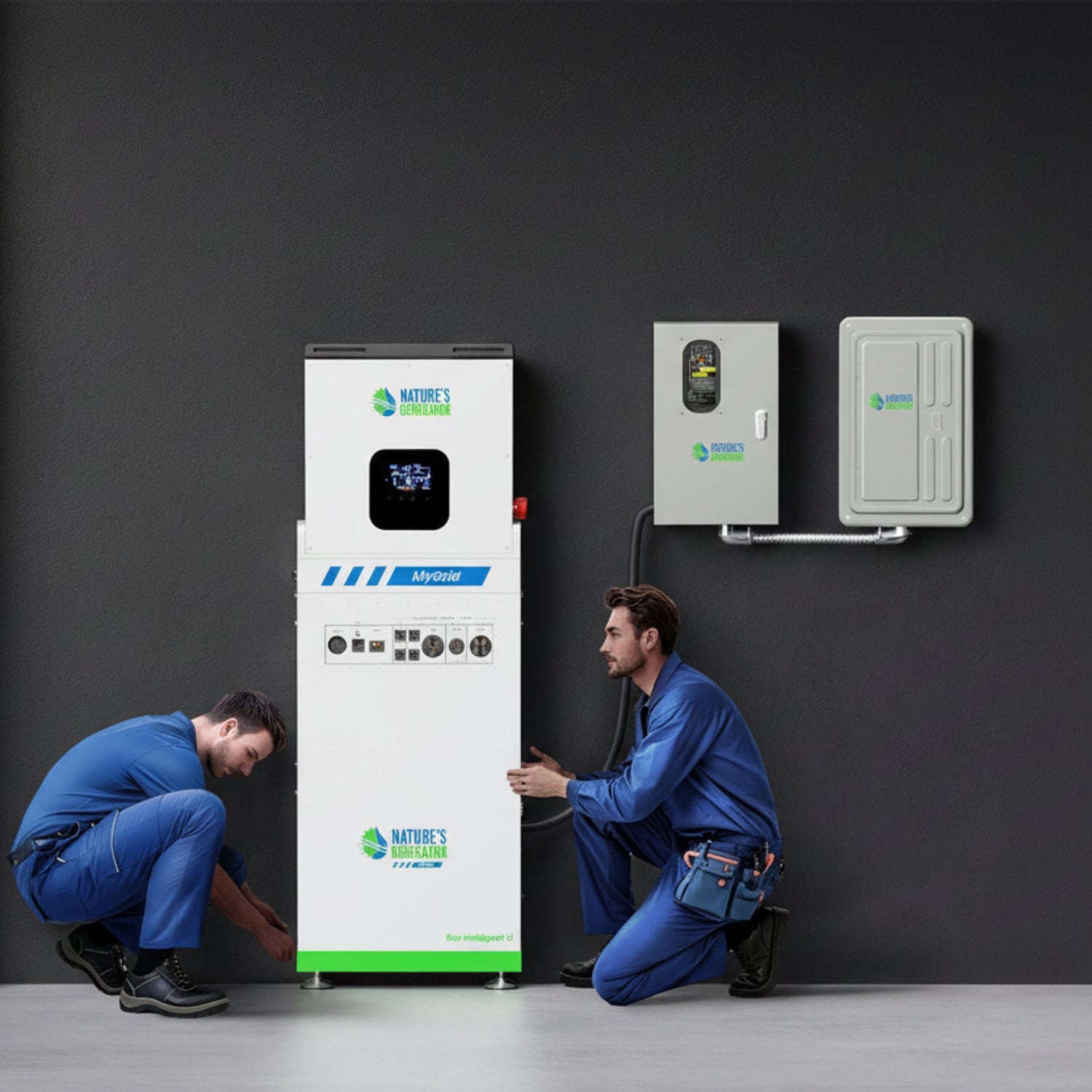

• Fast & Easy Installation: Plug-and-play design ensures quick setup, lower installation cost and hassle-free relocation, providing flexibility for homeowners, renters, and temporary spaces.
• Safe, Compact & Eco-Friendly: UL 1741 certified for safety and reliability, featuring a compact, space-saving design and support for solar, wind, AC, and generator charging for sustainable energy flexibility.

Inverter

• Output Continuous Power: 10,000W
• Output Peak Power: 20,000W
• Expandable Continuous Peak Power: 20,000W
• Expandable Peak Power: 40,000W
• Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases
• Output Frequency: 60Hz
• Output Power Form: Pure Sine Wave

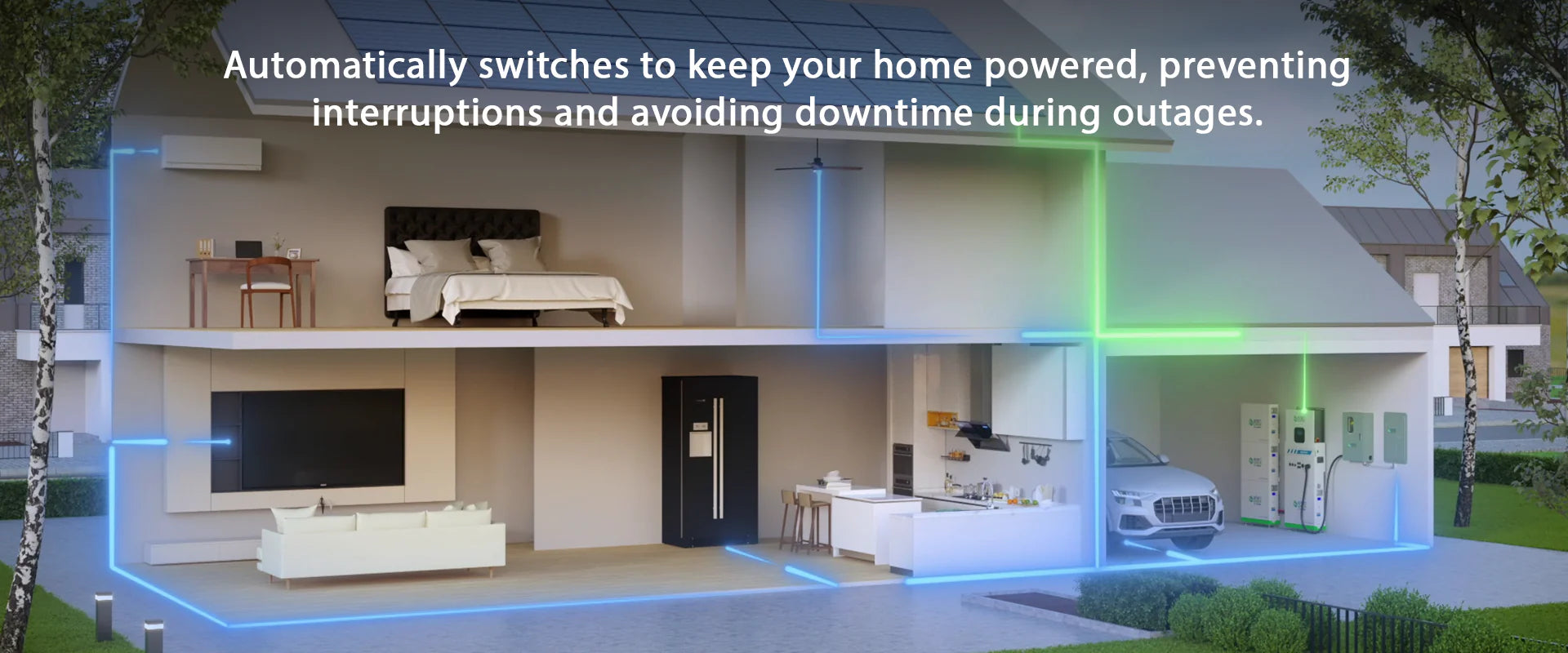

• Auto Switching: <20ms

Battery

• Capacity: 51.2V 205Ah (10,496Wh)
• Expandable Capacity: 73.4kWh (7x Battery)
• Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
• Cycle Life: >70% after 6000 Cycles
• Self Discharge: Recommend recharging every 6 months

Charges

• 120Vac Charger: 1000W
• 208Vac or 240Vac Charger: 4500W
• Wind Charger: 350W
• Solar Charger: 12,000W 120Vdc-550Vdc
• Solar Charge Mode: x2 MPPT

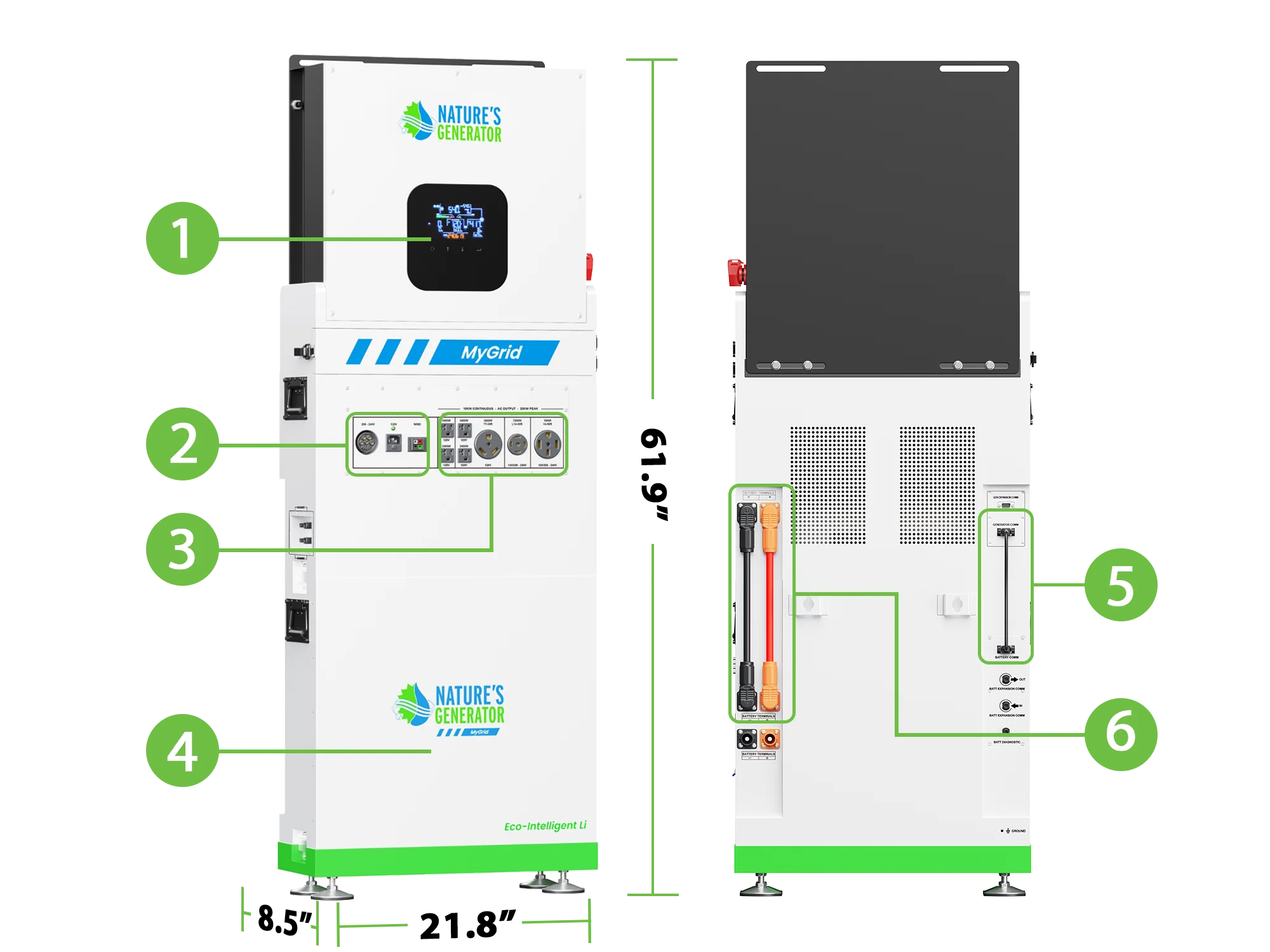

Ports

• Output Ports: 4x NEMA 5-20R Outlet, 1x NEMA TT-30R Outlet, 1x NEMA L14-30R Outlet, 1x NEMA 14-50R Outlet
• Input Ports: 2x Solar Input Ports, 1x Wind Input Port, 1x 120Vac Input Port, 1x 208Vac or 240Vac Input Port

General

• Optimal Operating Temperature: 68-86F (20-30C)
• Storage Temperature: 14-113F (-10-45C)
• Battery Charging Temperature: 32-113F (0-45C)
• Battery Discharging Temperature: 14-113F (-10-45C)
• Warranty: 5-Year Limited Warranty
• Certification: U.S. & Canada Safety Certified ANSI/CAN/UL 1741

Dimension and Weight

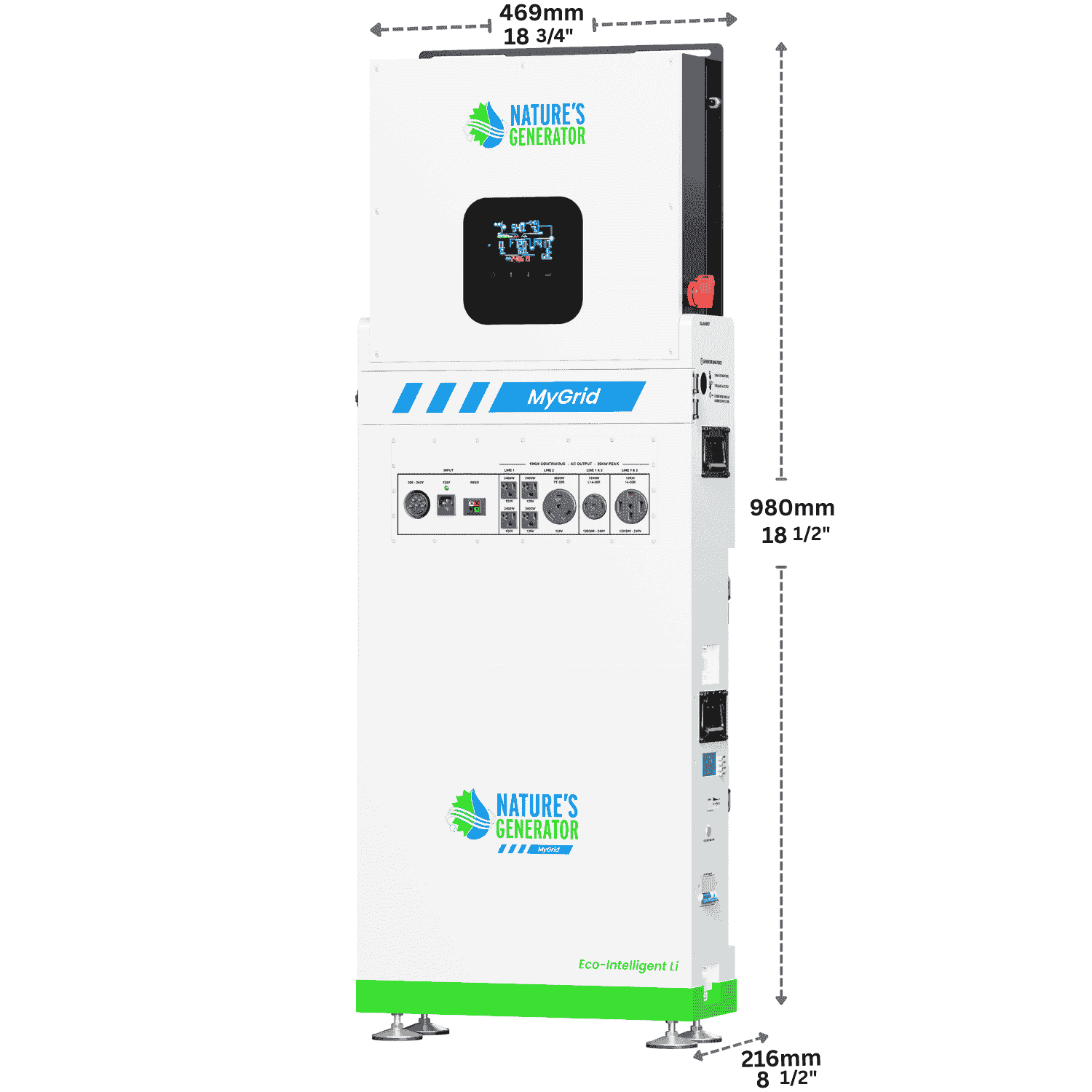

• Generator Dimensions: 21.8 x 8.5 x 38.5 in (555.4 x 216 x 980mm), not counting mounting bar
• Generator Weight: 152 lb (69 kg)

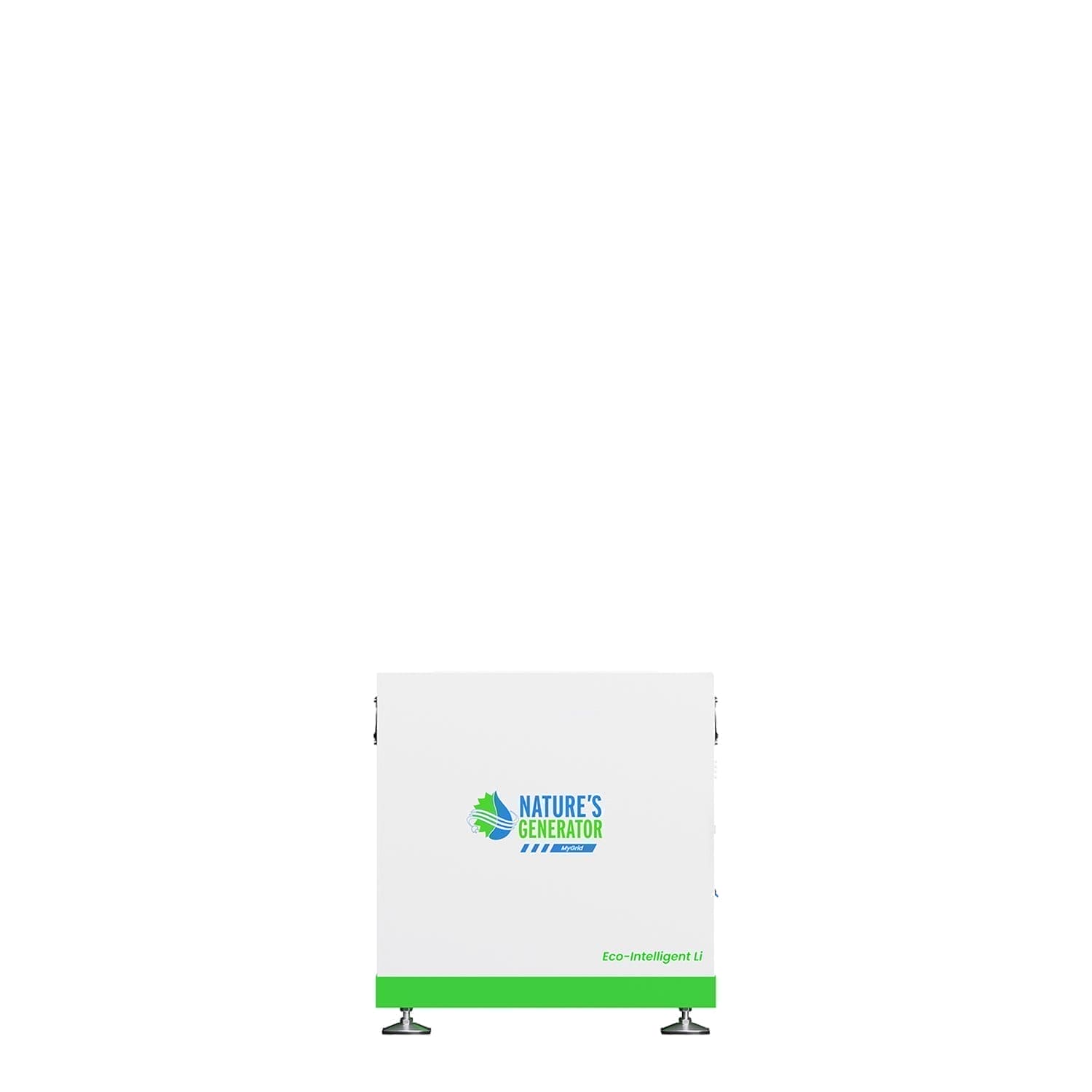

• Battery Dimensions: 21.8 x 8.5 x 23.4 in (555.4 x 216 x 596mm), not counting mounting bar
• Battery Weight: 213 lb (96.6 kg)

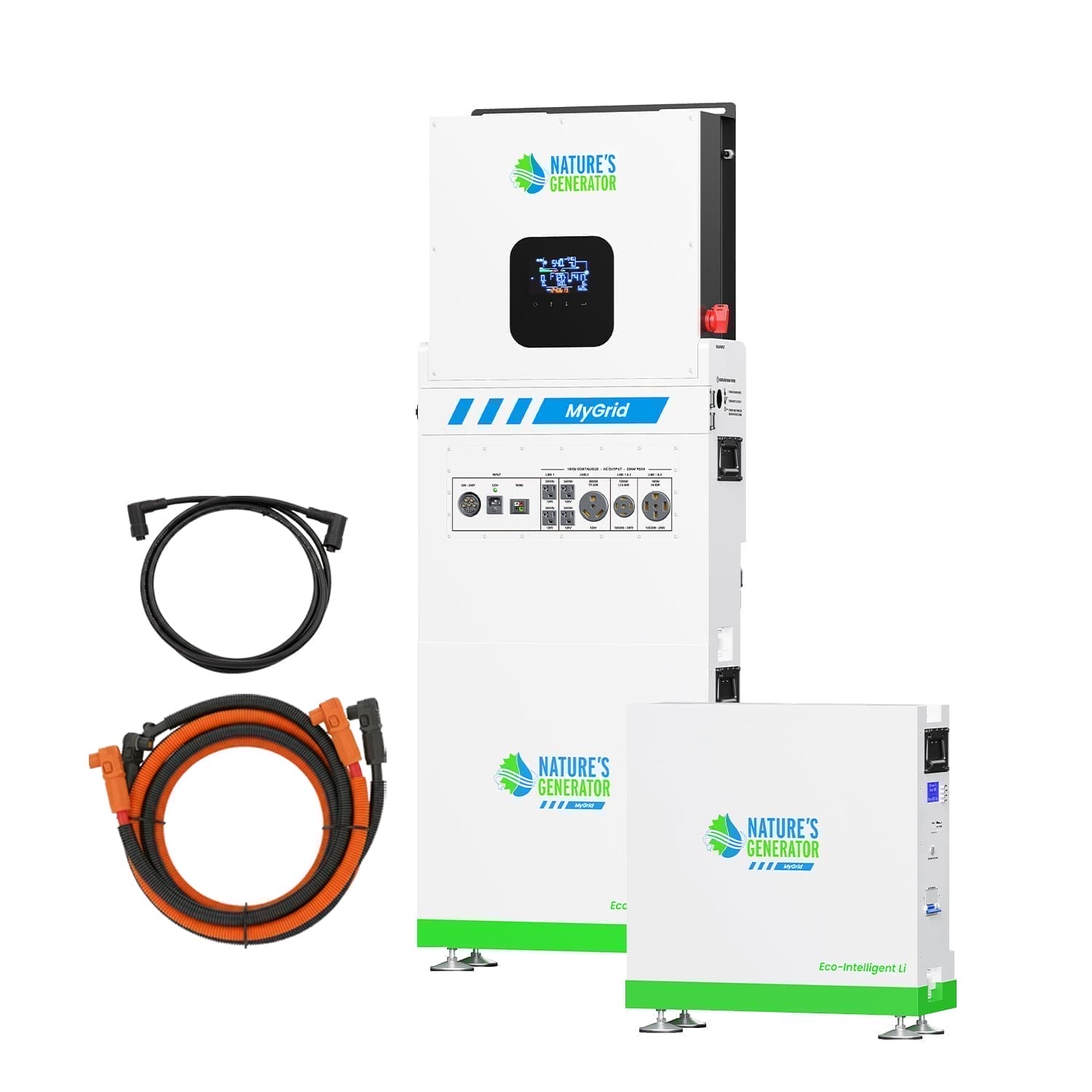

Package Includes

• 1x Nature's Generator MyGrid 10K Generator
• 1x AC Power Cord
• 1 Set Battery Cables
• 1 Set Generator Battery Communication Cable
• 1 Set Generator Mounting Bar with Bolts and Nuts
• 1 Set Side Security Brackets and Screws
• 1 Set Anchor Chains
