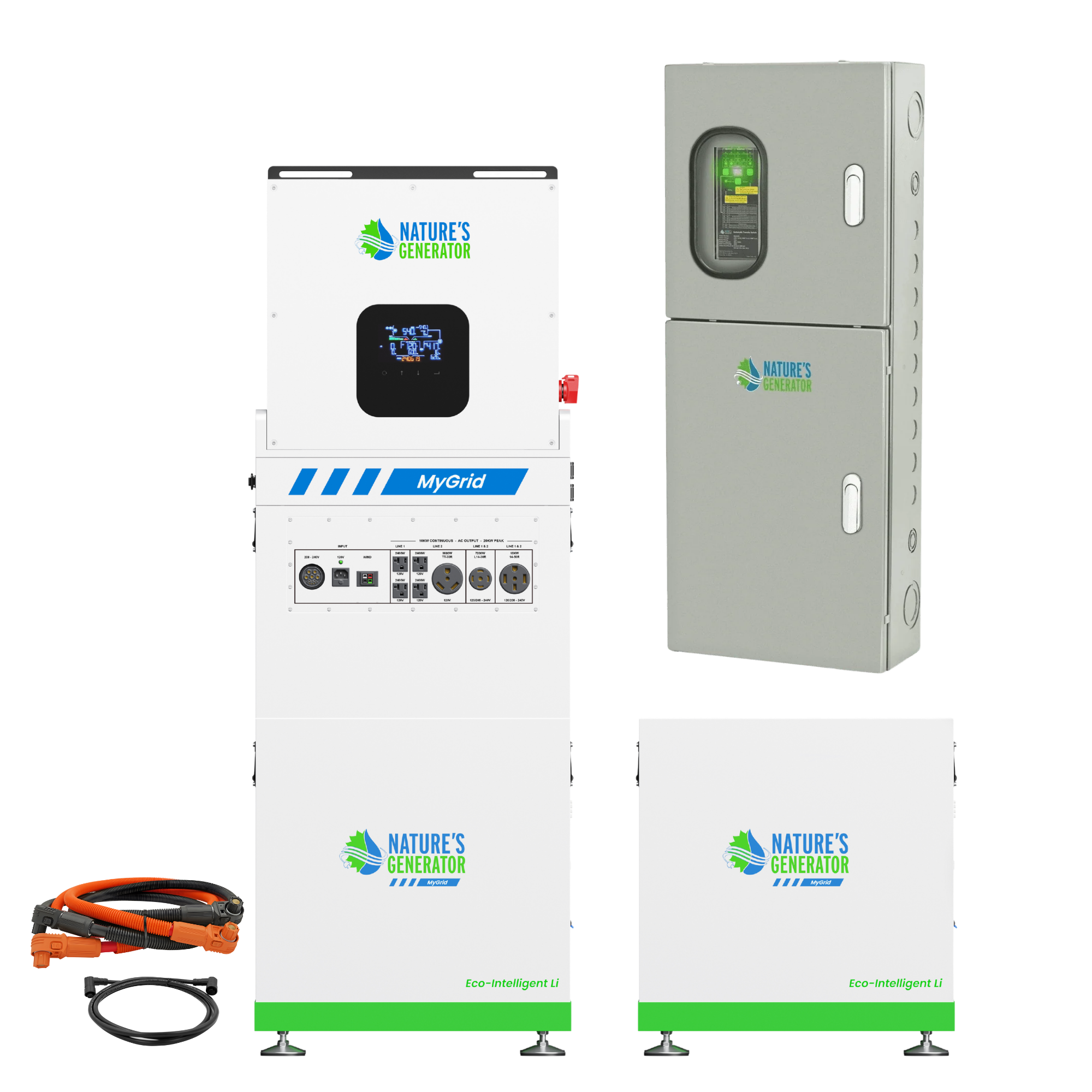

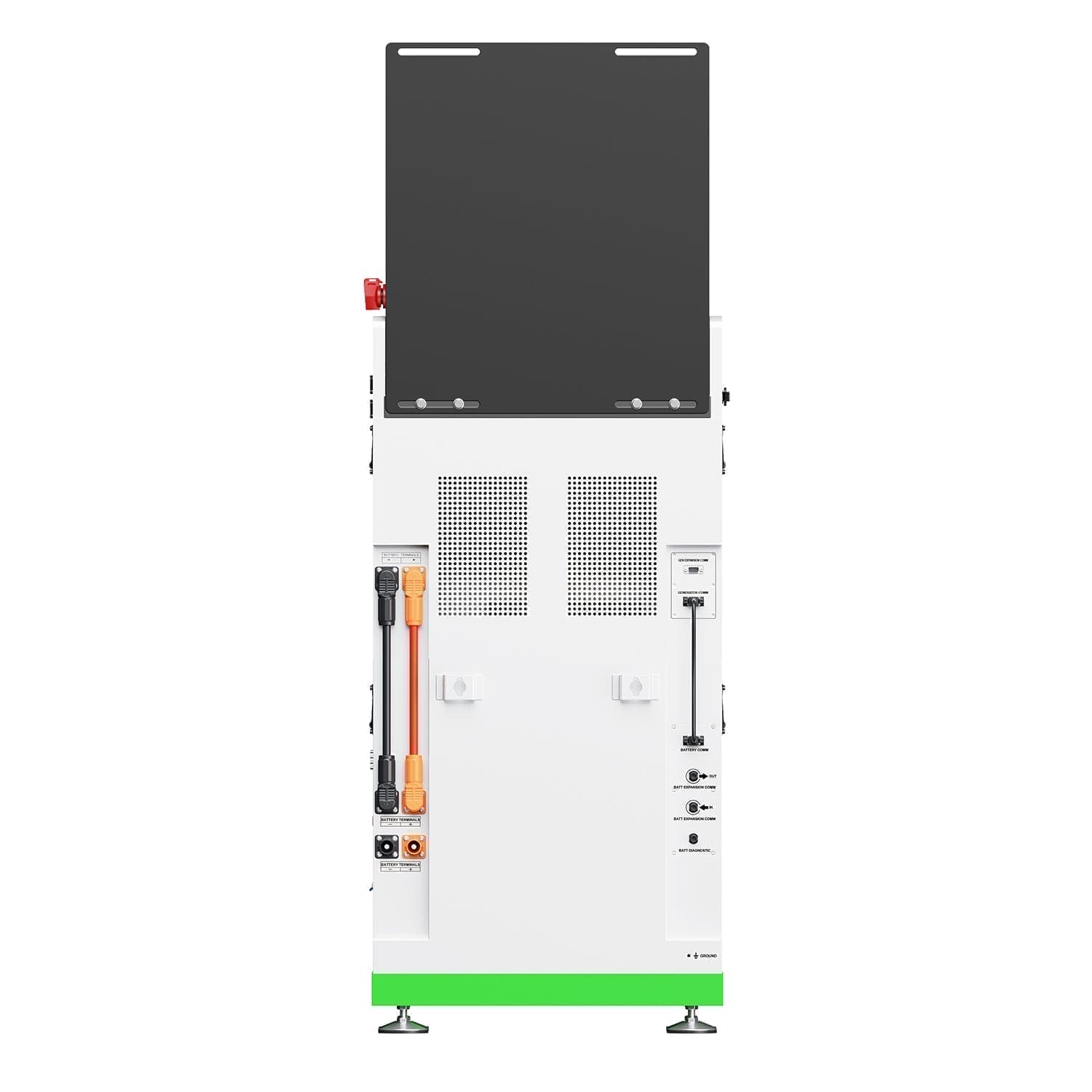

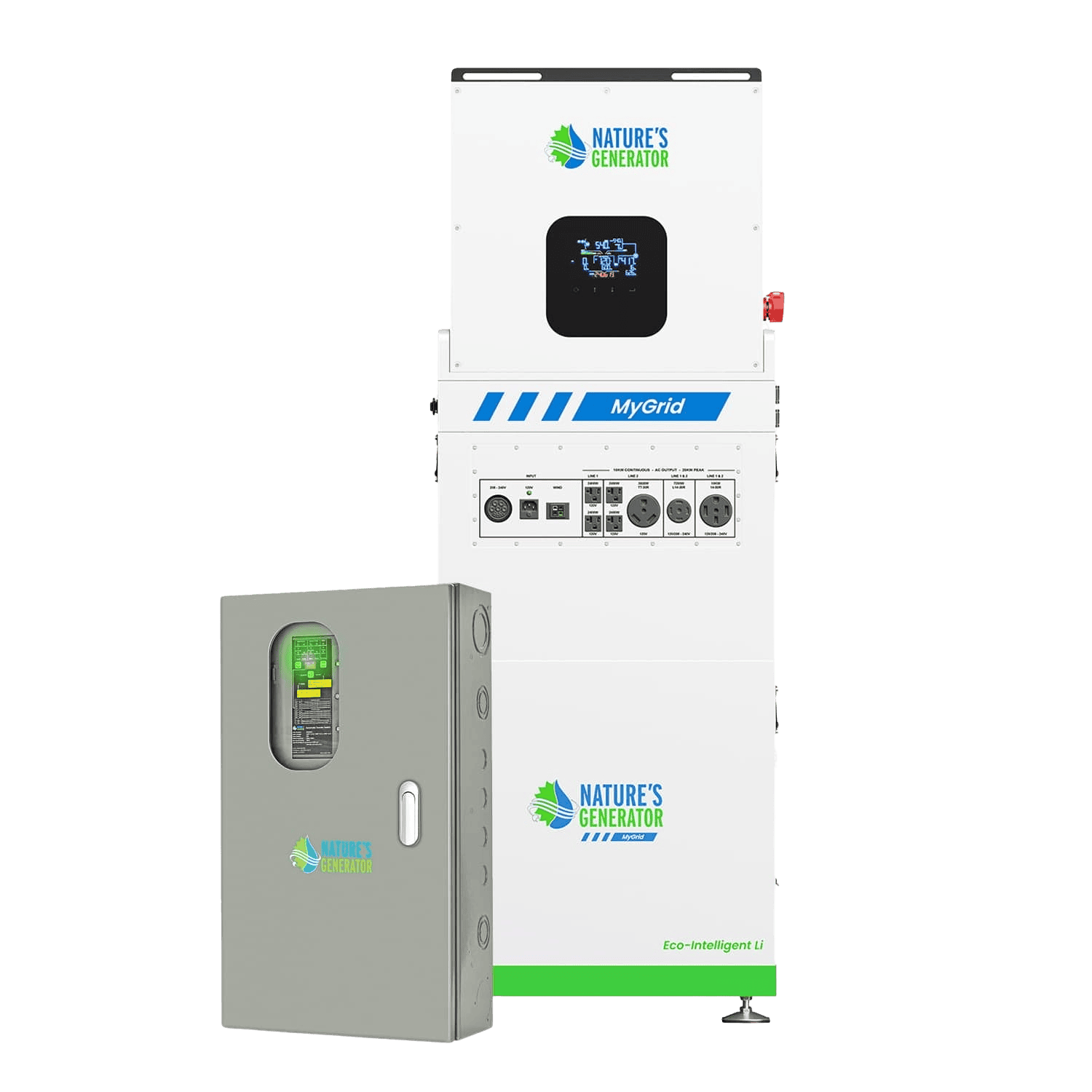

MyGrid 10K with Transfer Switch for House Battery Backup

• Complete Home Energy Backup: Bundles the MyGrid 10K with an automatic transfer switch for seamless power transition during outages, for reliable whole-home backup.

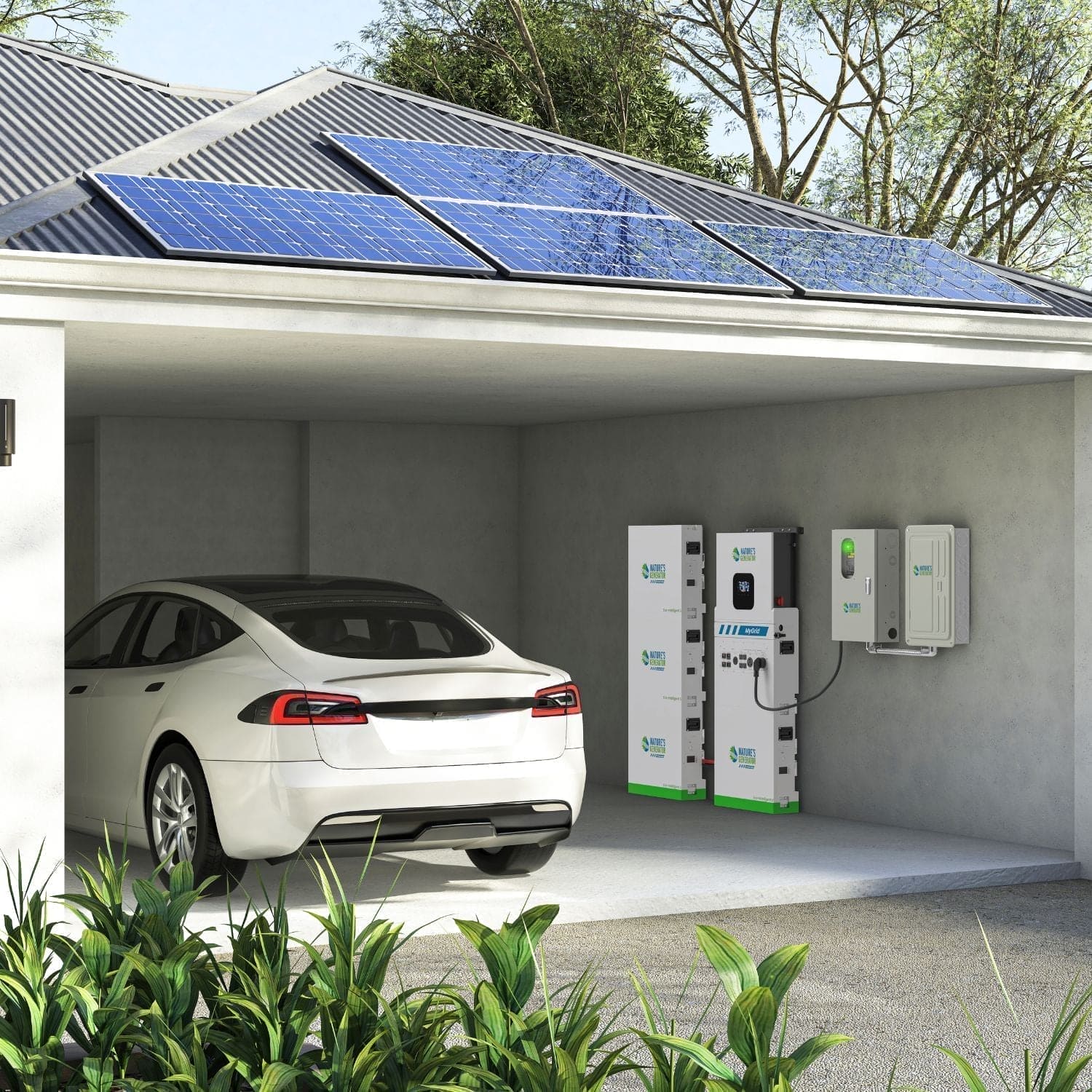

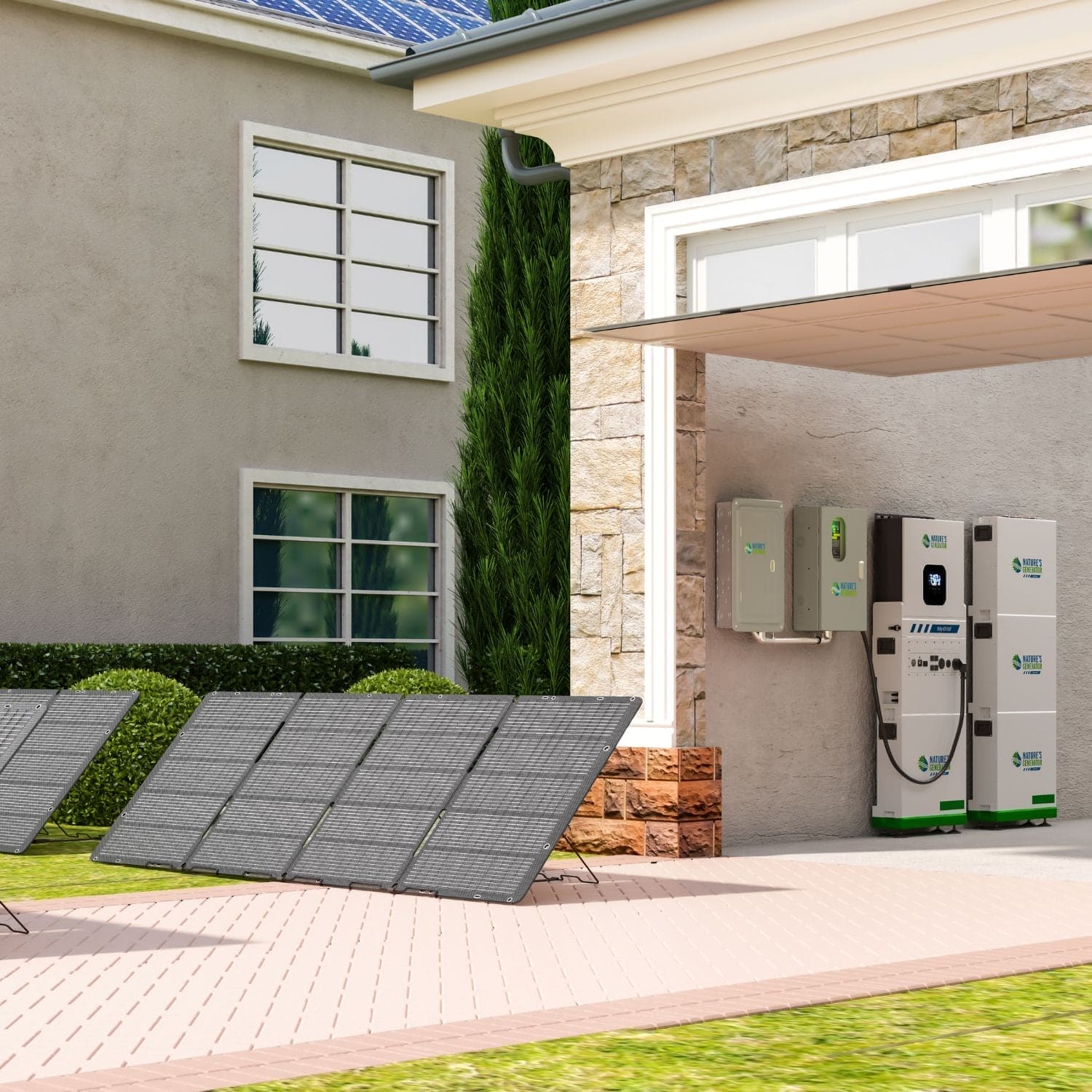

• Unlock Your Solar with AC Coupling: Seamlessly integrates with existing grid-tied inverters—no new panels required—so you can store excess energy, keep your solar running during outages, or even build your own independent grid for true energy freedom.

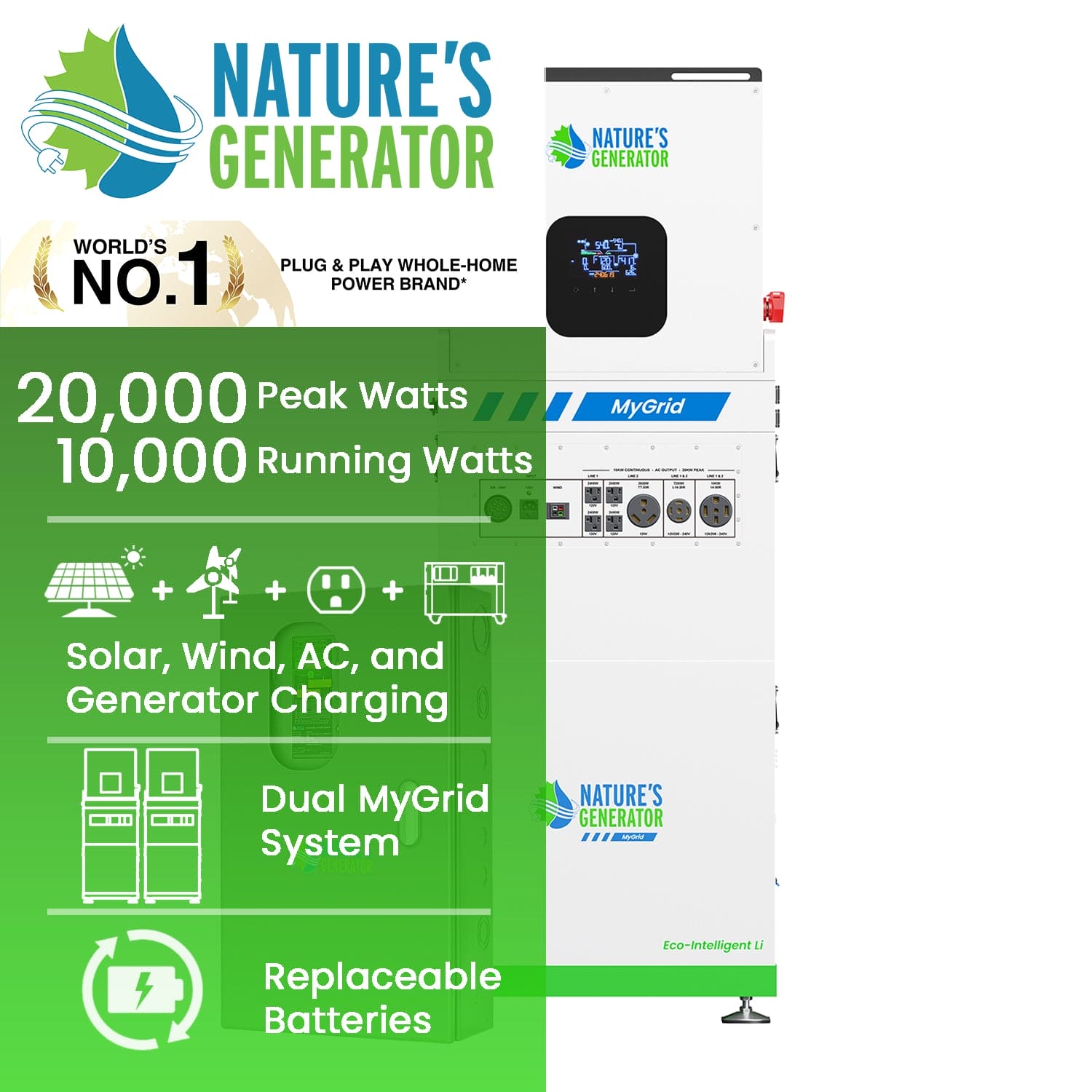

• Reliable Whole-Home Performance: Delivers 10,000 W continuous output with a 10,496 Wh LiFePO₄ battery, dependable whole-home power for outages or off grid use or uninterrupted power supply.
• Expandable for Growing Needs: Combine two units for 20,000W output, expand battery capacity to 73,742Wh, and integrate up to 12,000W solar panels or 350W wind turbine as energy needs grow.

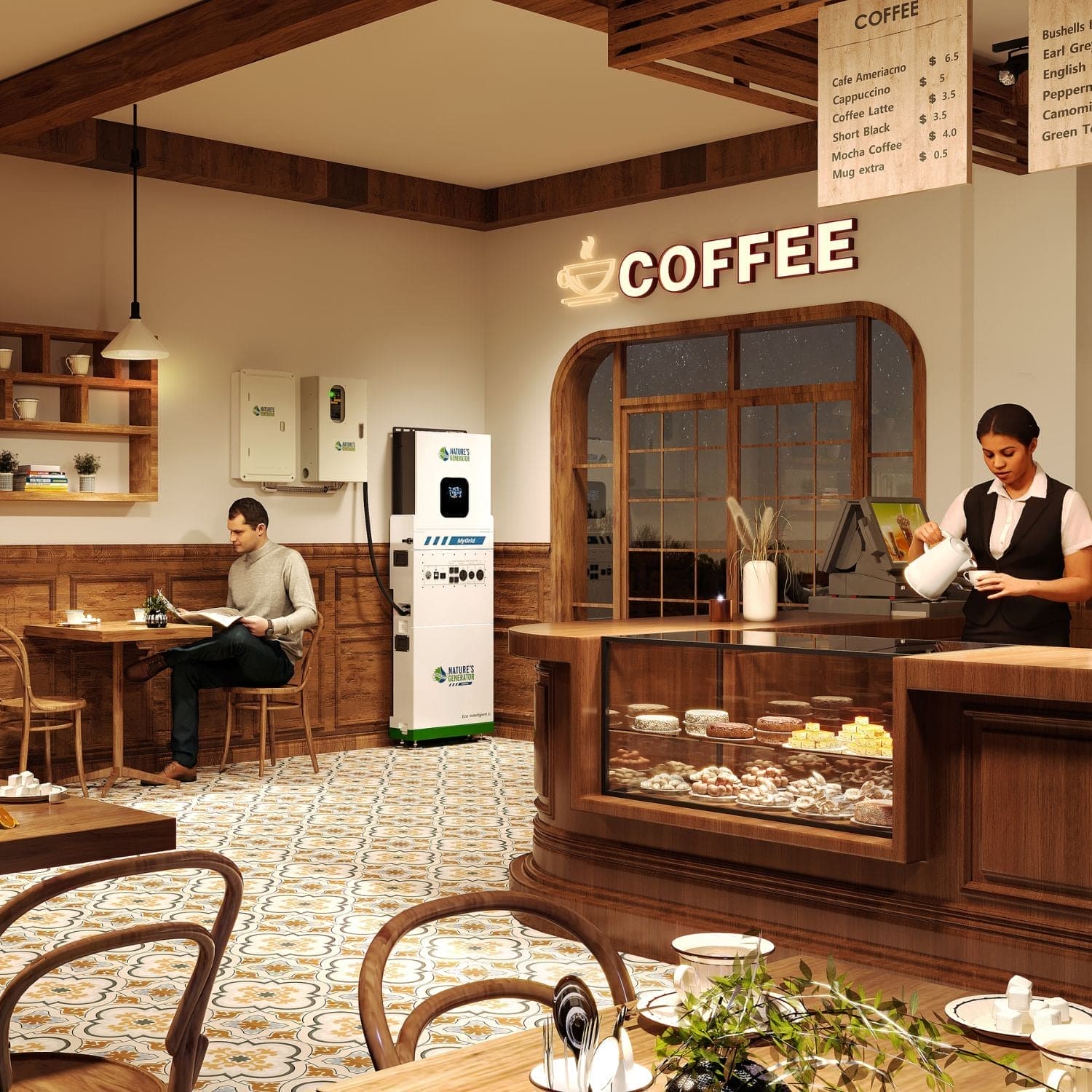

• Dual Voltage Compatibility: Supports 120V, 120/240V and120/208V charging and discharging, suitable for residential, light commercial and AC coupling applications.
• Fast Recharge Performance: Advanced charging technology enables up to 80% charge in approximately 2 hours, minimizing downtime.

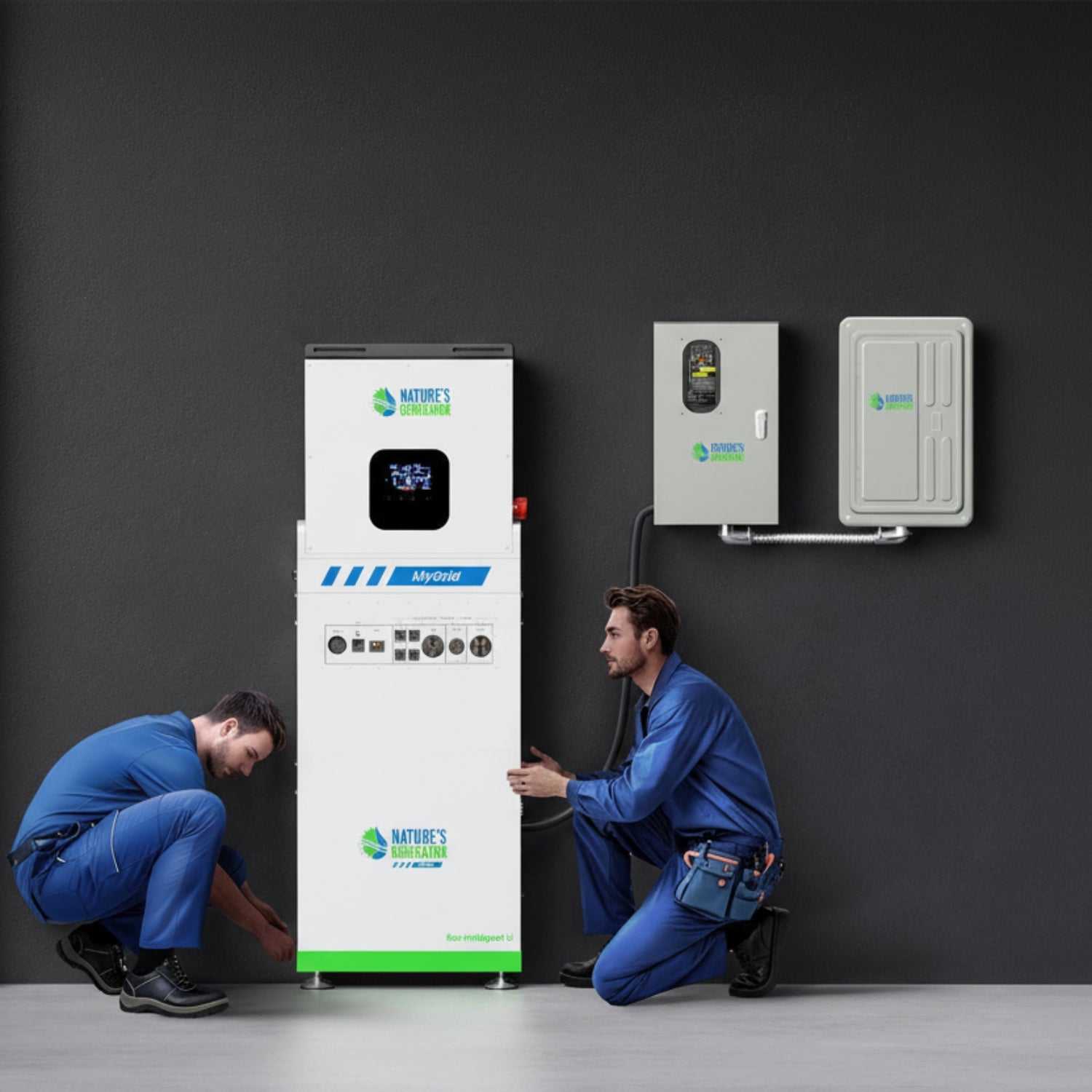

• Fast & Easy Installation: Plug-and-play design ensures quick setup, lower installation cost and hassle-free relocation, providing flexibility for homeowners, renters, and temporary spaces.
• Smart Protection & Compact Safe Design: Integrated Battery Management System (BMS) continuously monitors and protects battery health for long life, while the compact,eco-friendly, and UL 1741 certified system ensures safe, sustainable home energy.

Inverter

• Output Continuous Power: 10,000W
• Expandable Continuous Peak Power: 20,000W
• Output Peak Power: 20,000W
• Expandable Peak Power: 40,000W
• Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases
• Output Frequency: 60Hz
• Output Power Form: Pure Sine Wave
• Auto Switching: <20ms

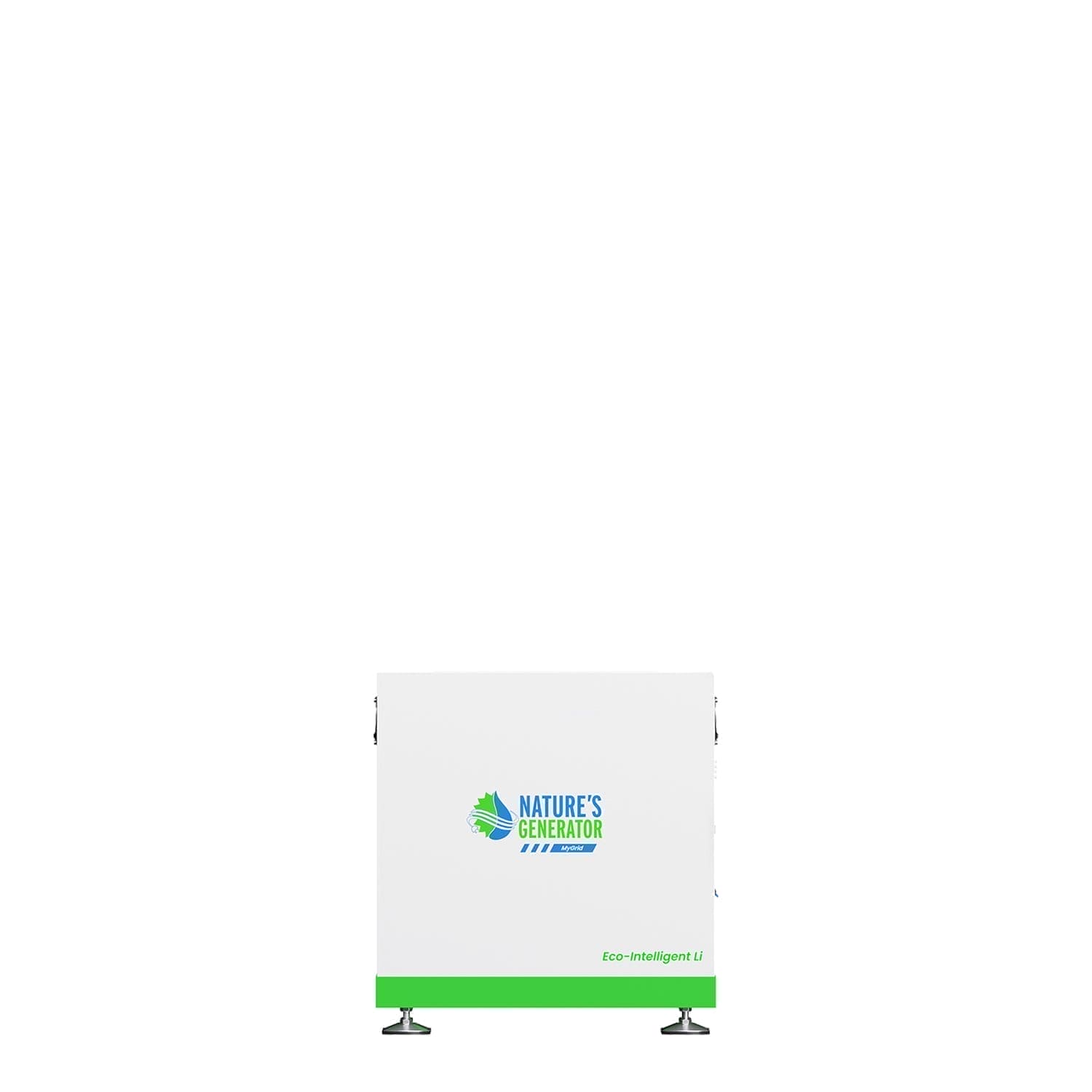

Battery

• Capacity: 51.2V 205Ah (10,496Wh)
• Expandable Capacity: 73.4kWh (7x Battery)
• Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
• Cycle Life: >70% after 6000 Cycles
• Self Discharge: Recommend recharging every 6 months

Charges

• 120Vac Charger: 1000W
• 208Vac or 240Vac Charger: 4500W
• Wind Charger: 350W

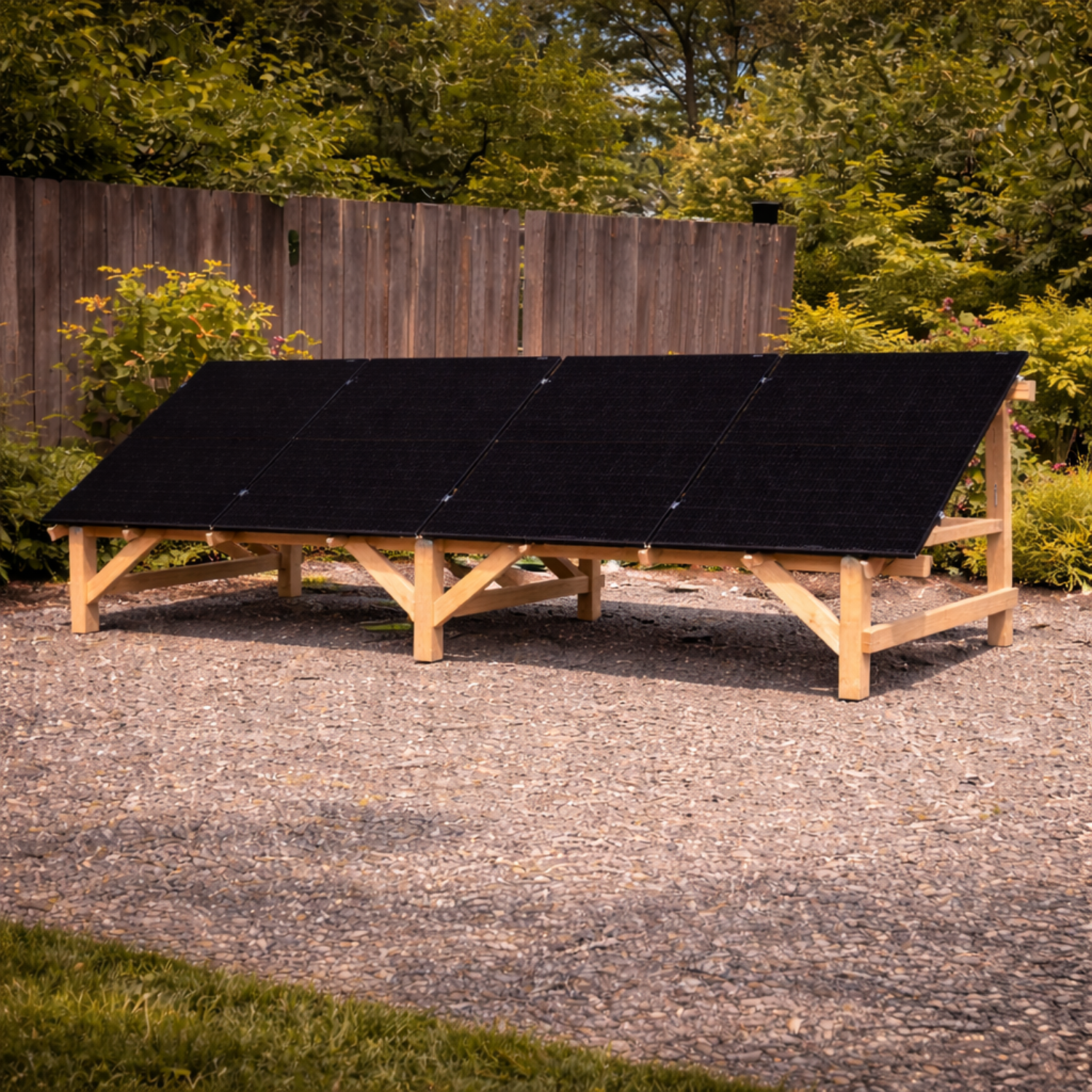

• Solar Charger: 12,000W 120Vdc-550Vdc
• Solar Charge Mode: x2 MPPT

General

• Warranty: 5-Year Limited Warranty
• Certification: U.S. & Canada Safety Certified ANSI/CAN/UL 1741

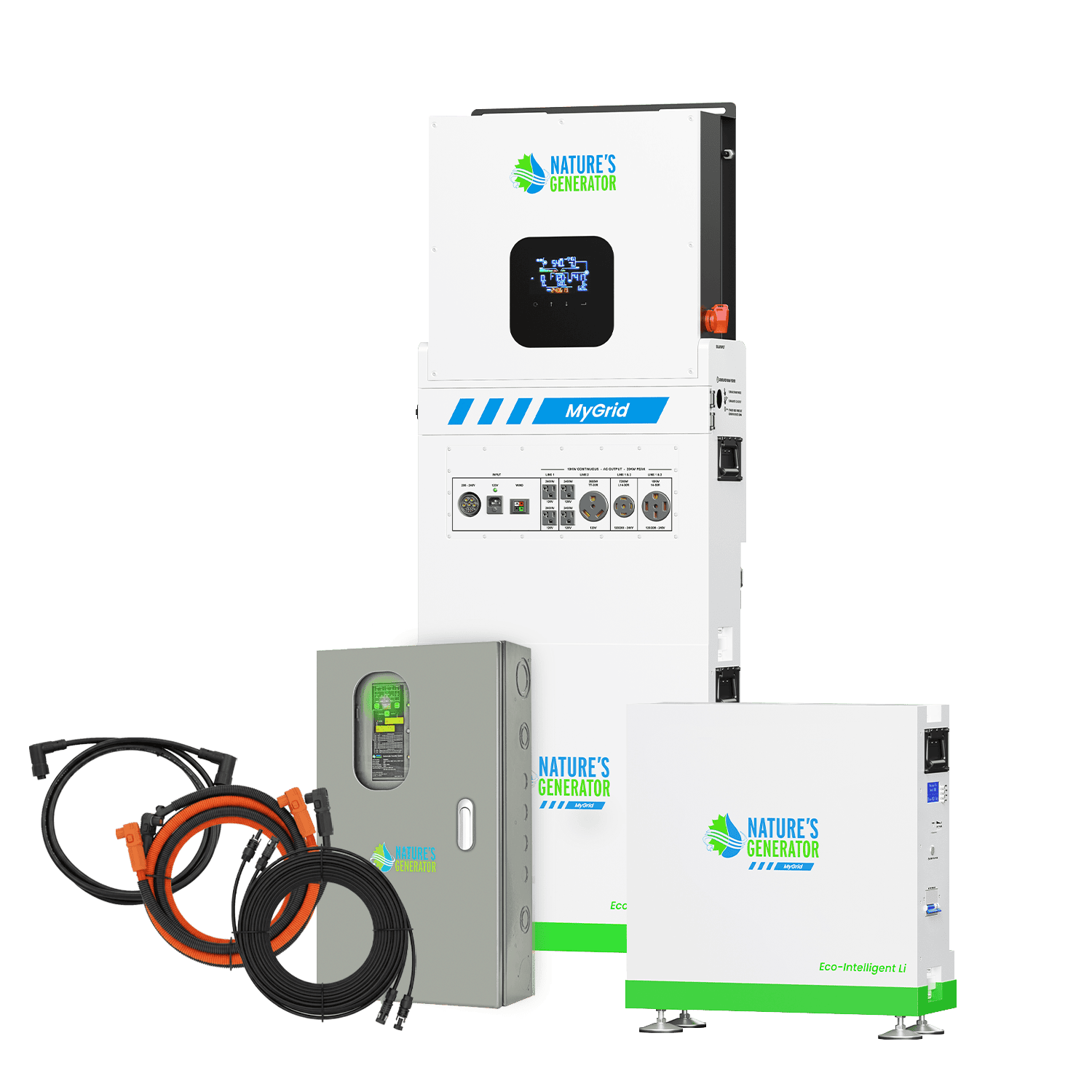

Package Includes

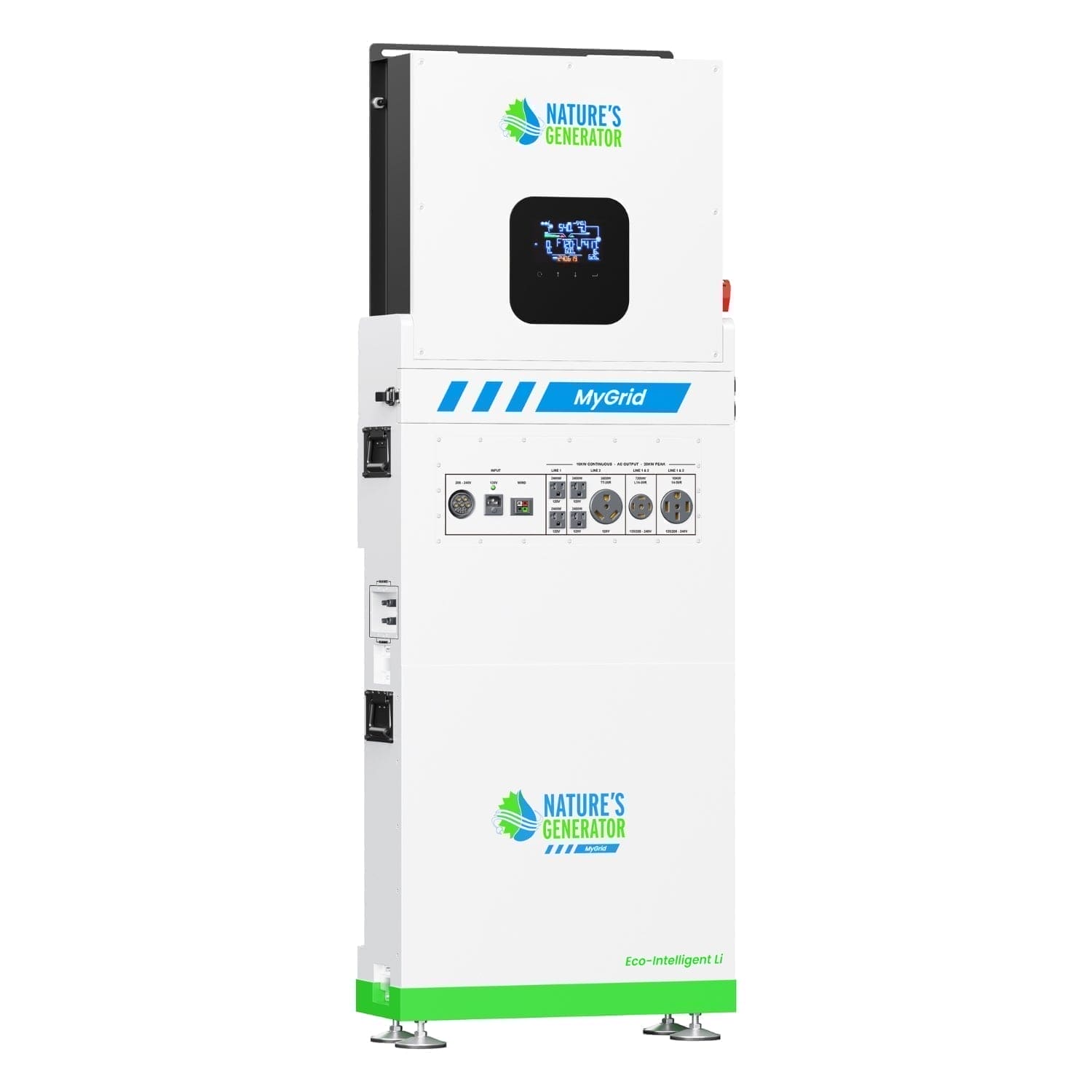

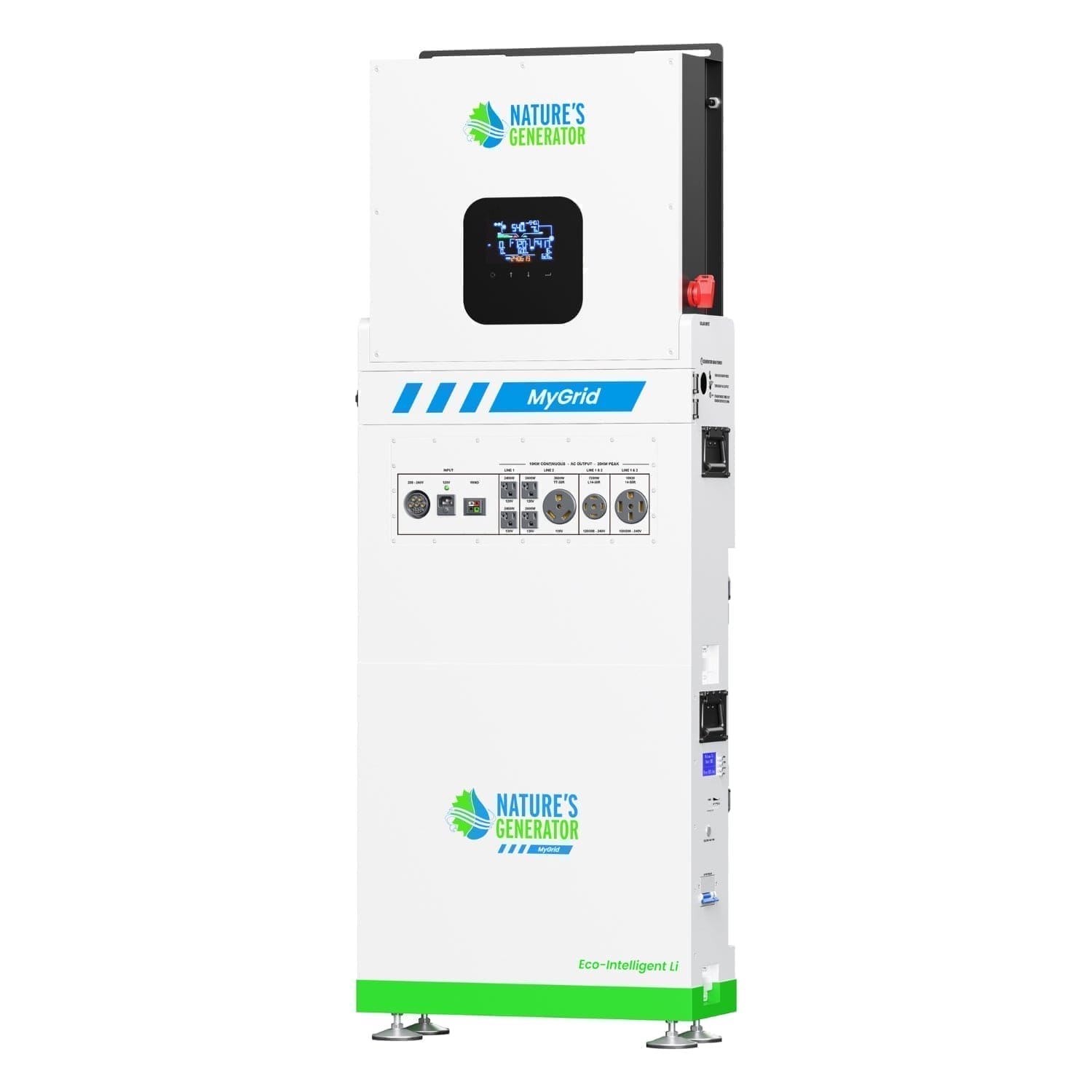

• 1x Nature's Generator MyGrid 10K Generator
• 1x AC Power Cord

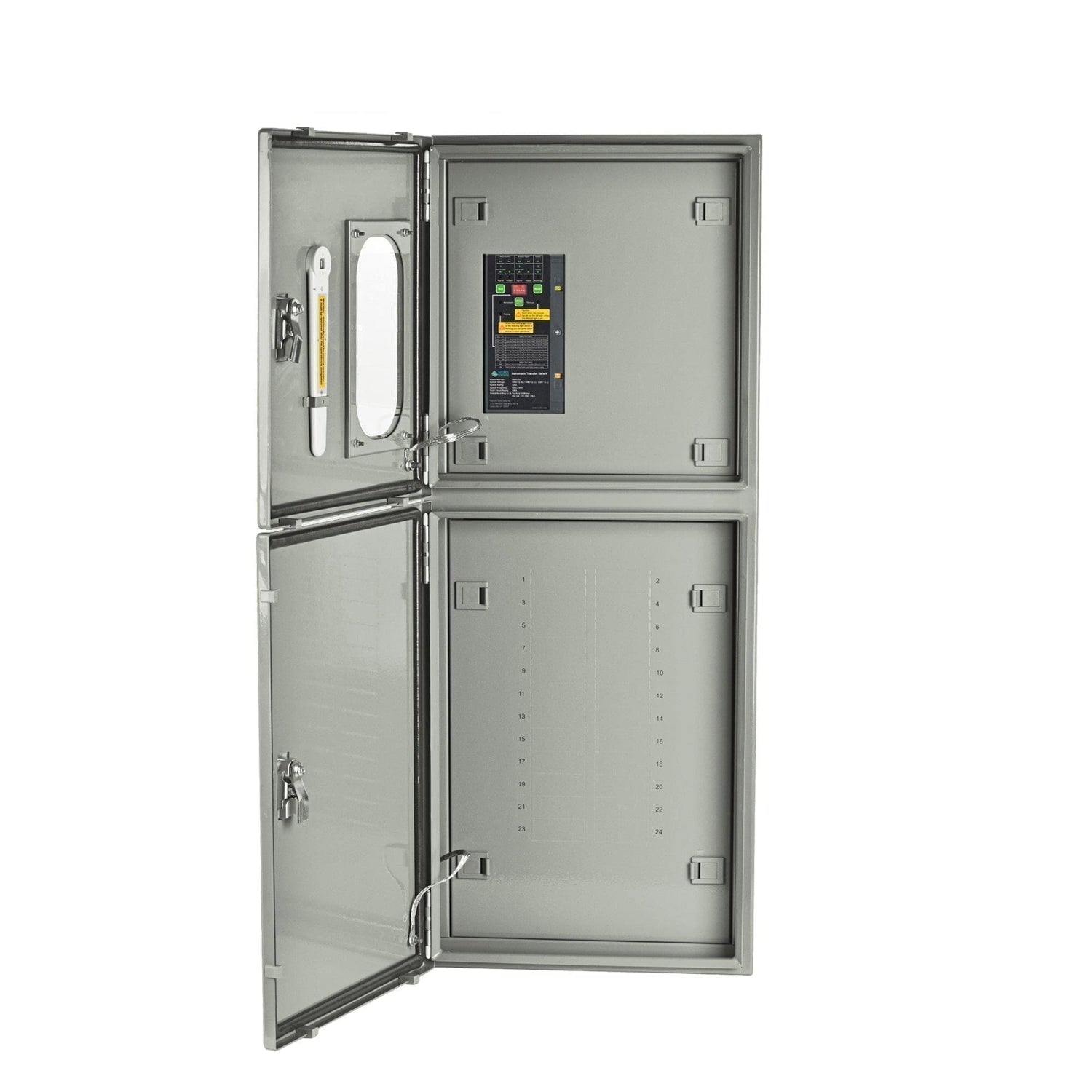

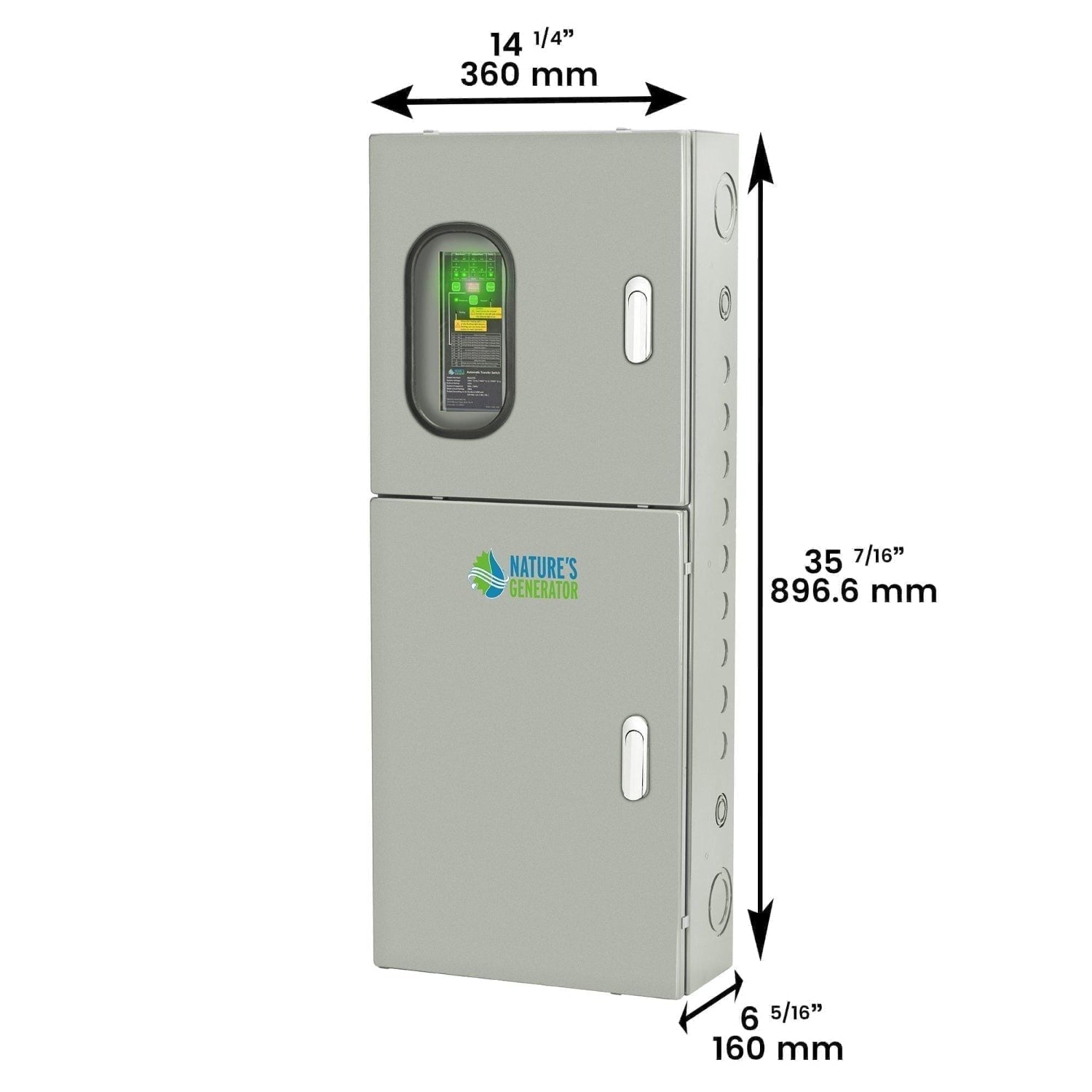

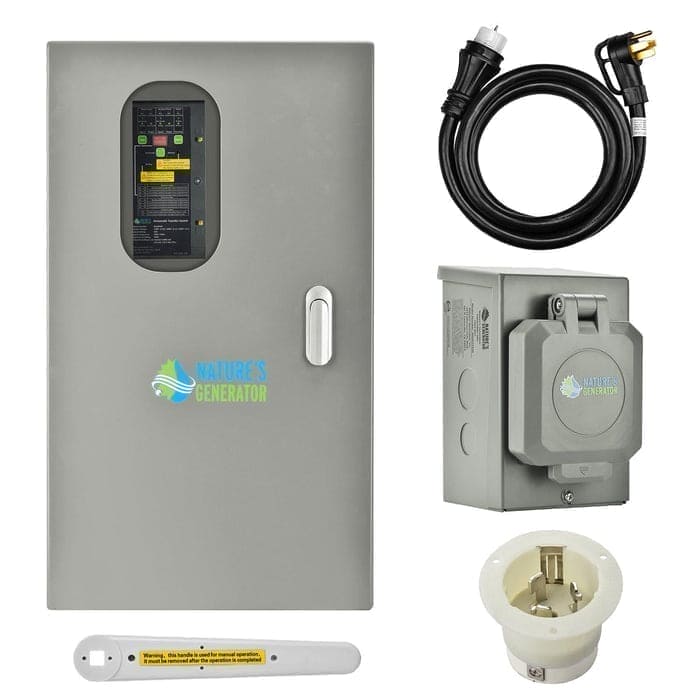

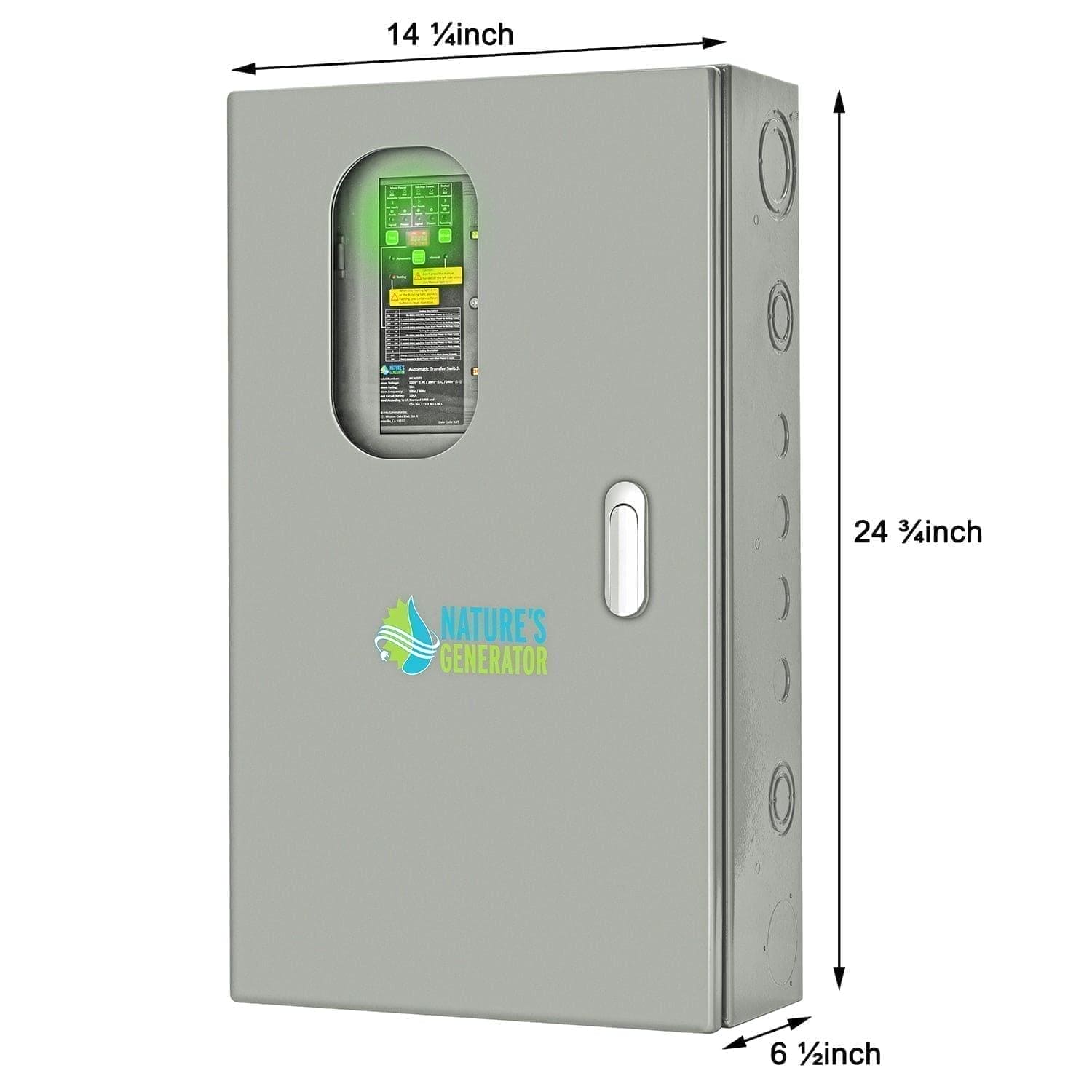

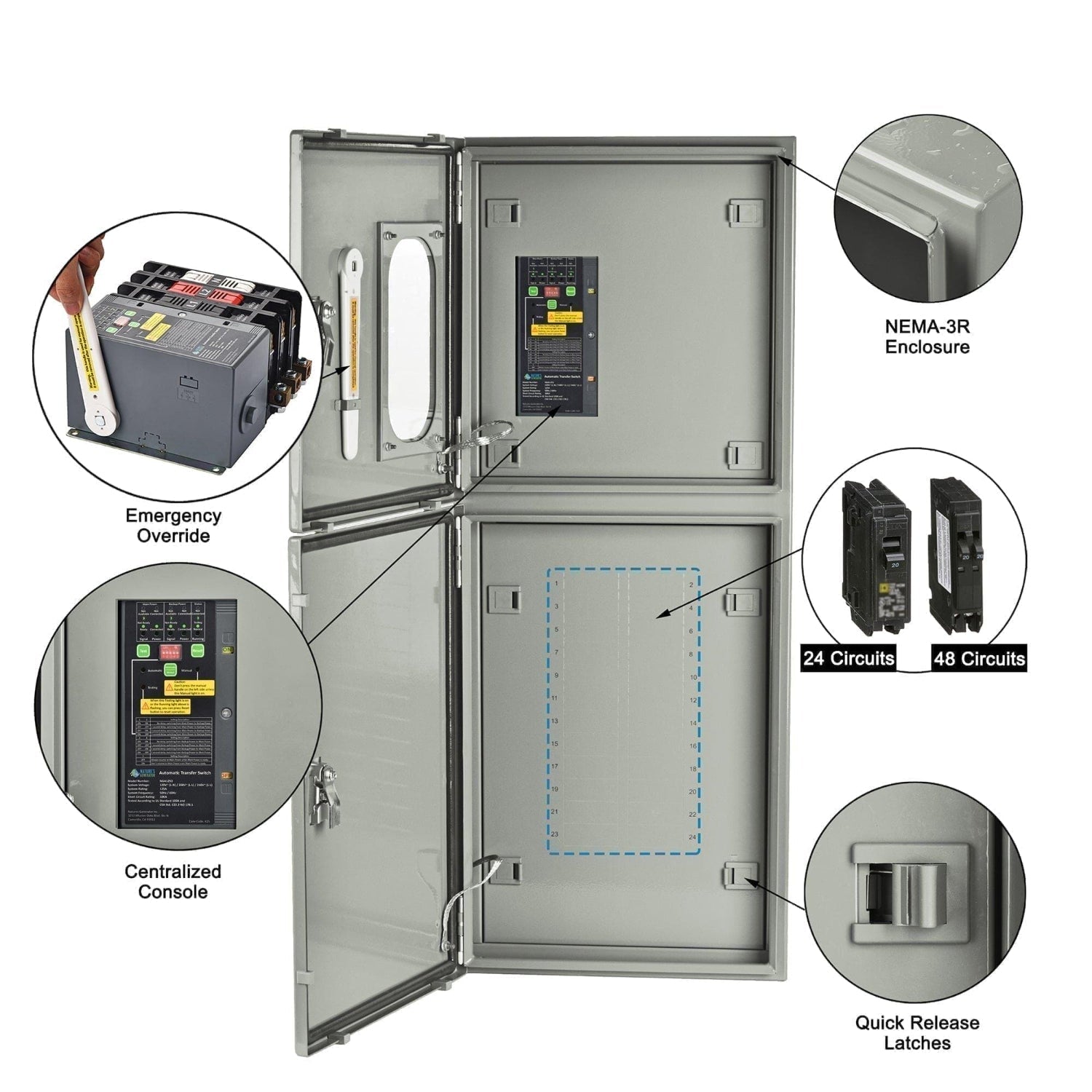

• 1x 50A Automatic Transfer Switch
• 1 Set Battery Cables
• 1 Set Generator Battery Communication Cable
• 1 Set Generator Mounting Bar with Bolts and Nuts
• 1 Set Side Security Brackets and Screws
• 1 Set Anchor Chains
